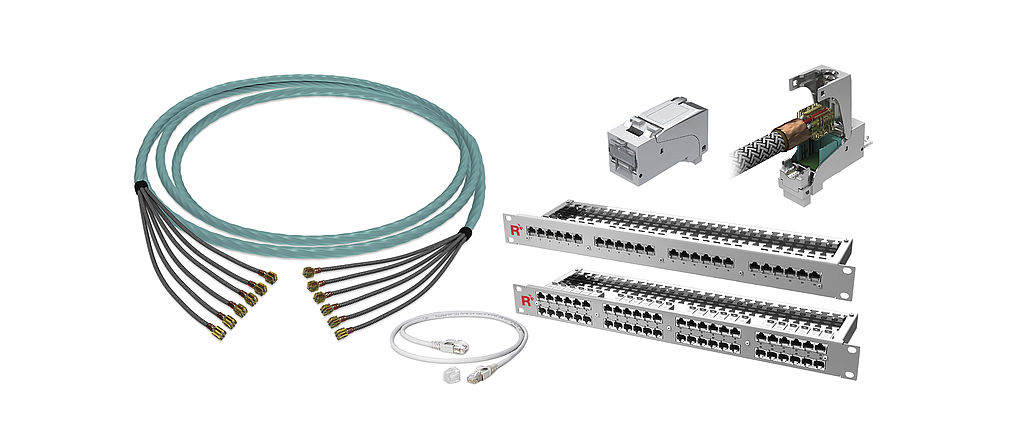

PreCONNECT® COPPER High Density – for higher port density

Rosenberger Longwipe-SMP subminiature coaxial connectors are suited to applications up to 6 GHz and enable axial tolerance compensation of ± 0.7 mm. Full and limited detent options are available as well as smoother bore/catchers mitt, enabling sliding contact with expanded guide-in range.

Rosenberger RPC-7 “hermaphroditic” connectors with 7 mm diameter at outer contact are designed for precision measurements up to 18 GHz and are suitable for semi-rigid cables and microwave components. Mating electrically with center and outer conductor by end-surface (butt) contact, the mechanical connection is designed as a counter-sinkable threaded socket. For total flexibility, these low reflection connectors are intermateable with all common 7 mm series connectors including APC-7, PC-7, GPC-7 or Precifix AA. Furthermore, RPC-7 and RPC-N connector heads are interchangeable using the same bead type. The wide product range comprises connectors and connector heads, adaptors, interchangeable port connectors, airlines as well as test & measurement accessories such as RPC-7 calibration and verification kits, test cables, attenuators or measurement equipment (open – short – load).

Rosenberger SMP Infinity is the innovative and highly compact PCB connector series with a one-step locking mechanism for delivering maximum performance for a wide range of applications up to 40 GHz. The series is available as cable, PCB and bulkhead connectors, as well as test adaptors and cable assemblies.

PreCONNECT® TRUNK MULTIJUMPER are especially suitable for applications of the direct connection of equipment in data centers, SANs and server farms for cabling of big switches and stand-alone IT-Hardware.
