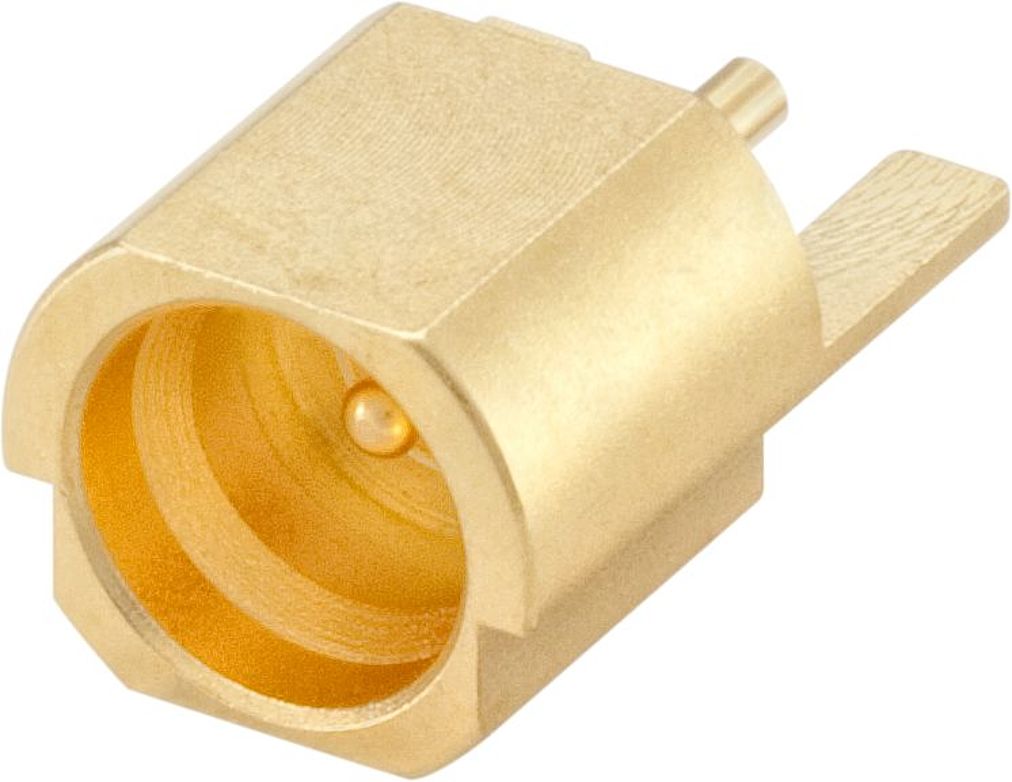

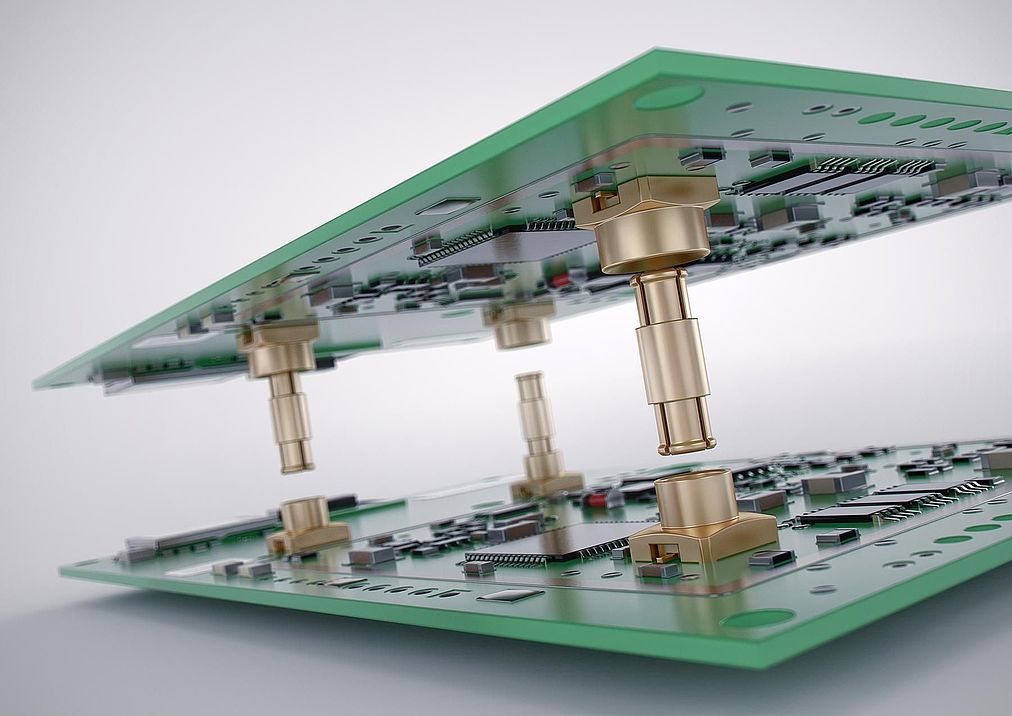

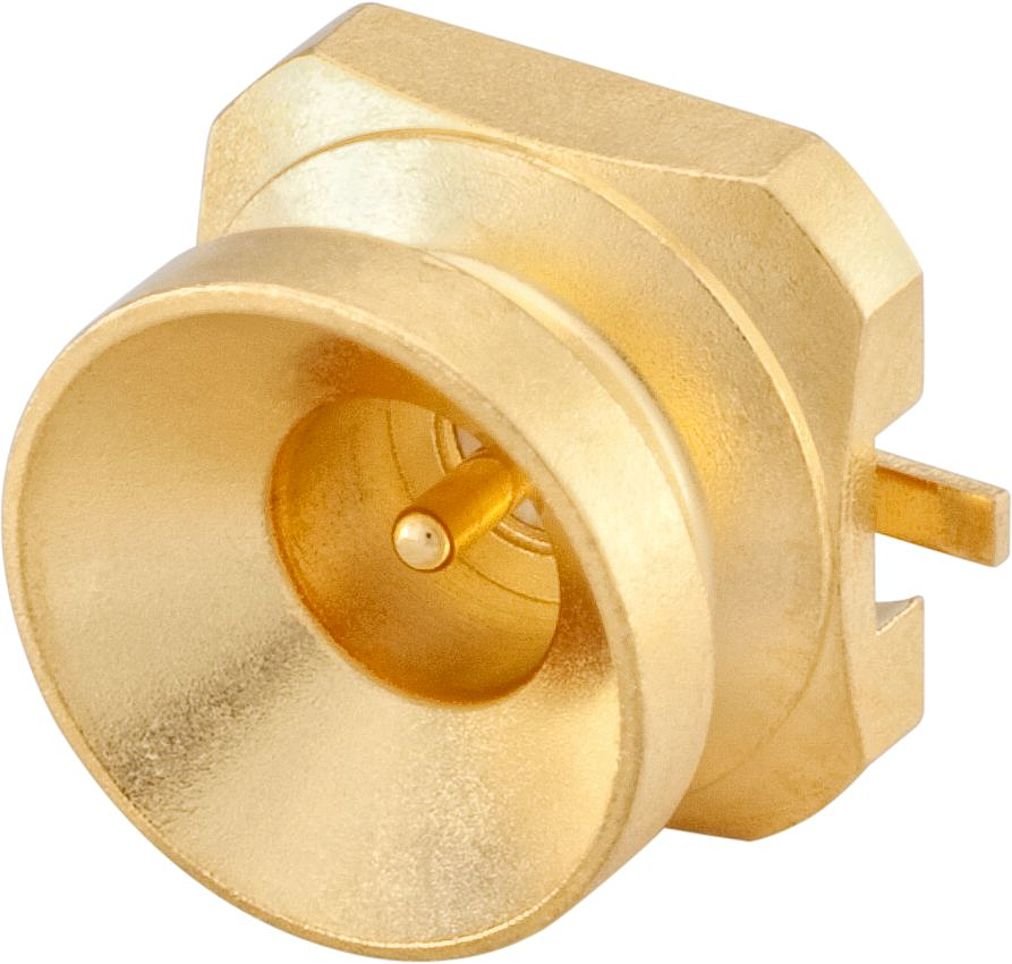

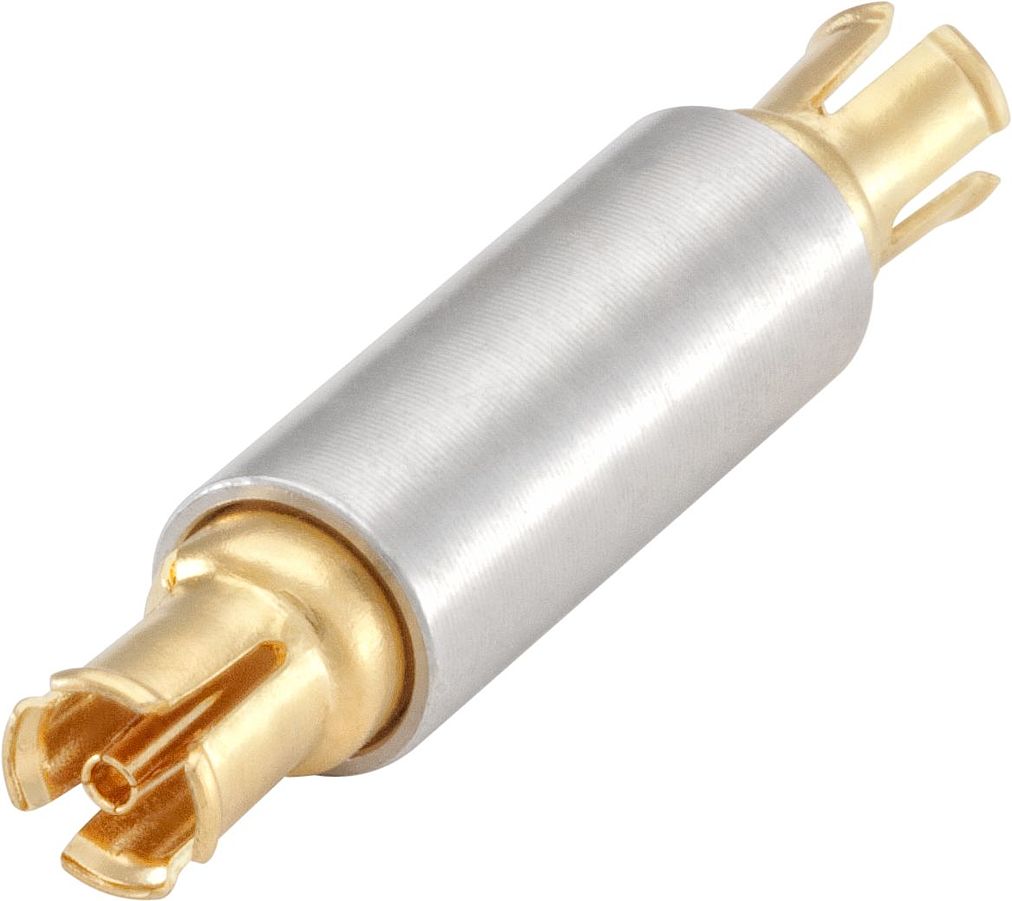

Longwipe-SMP

Rosenberger QN coaxial connectors are based on the N connector interface. With a frequency range of up to 11 GHz depending on the connector and cable type, the quick-lock mechanism enables reliable and easy connection, 10 times faster than standard N offerings. Ideal for tight spaces such as those found in mobile base stations, the packing density of QN exceeds that of N connectors due to the minimum pitch and toolless assembly. Torque spanners are not required. QN and standard N connectors are not intermateable.

Rosenberger RPC-1.85 precision connectors – with 50 Ω impedance and 1.85 mm outer conductor diameter – are designed for test & measurement applications up to 70 GHz. Delivering outstanding reliability and repeatability performance they are intermateable with common 1.85 mm series and V connectors as well as with RPC-2.40 connectors. This comprehensive product range is suitable for semi-rigid cables and microwave components and includes cable, panel and PCB connectors, adaptors and test & measurement accessories – including RPC-1.85 calibration kits, cables assemblies, measurement equipment, attenuators, sliding loads and airlines.

The Rosenberger RPC-SL series are interchangeable port connector systems for use with test equipment where test ports are frequently mated and re-mated. Under such heavy usage, Rosenberger RPC-SL interchangeable port connectors allow the equipment/device interface to be fully protected from potential damage, avoiding the risk of costly repairs. The RPC-SL port connector includes a panel mounting half and a sexless interface which features two spring-loaded butt contacts. This ensures no wear occurs during mating and eliminates the possibility of accidental damage from mismatching of connector halves. Furthermore, the interface between the panel mount and the adaptor is slotted, preventing the mating faces from rotating and possible damage. The RPC-SL portfolio offers both 26.5 GHz and 40 GHz versions. While adaptors can be interchanged and are available in different connector series, the connector heads in these two ranges are not compatible and can only be used with their own system.
