Zinc/Zn
Connectors & Adaptors
RPC-7
Product code 5YZFL4

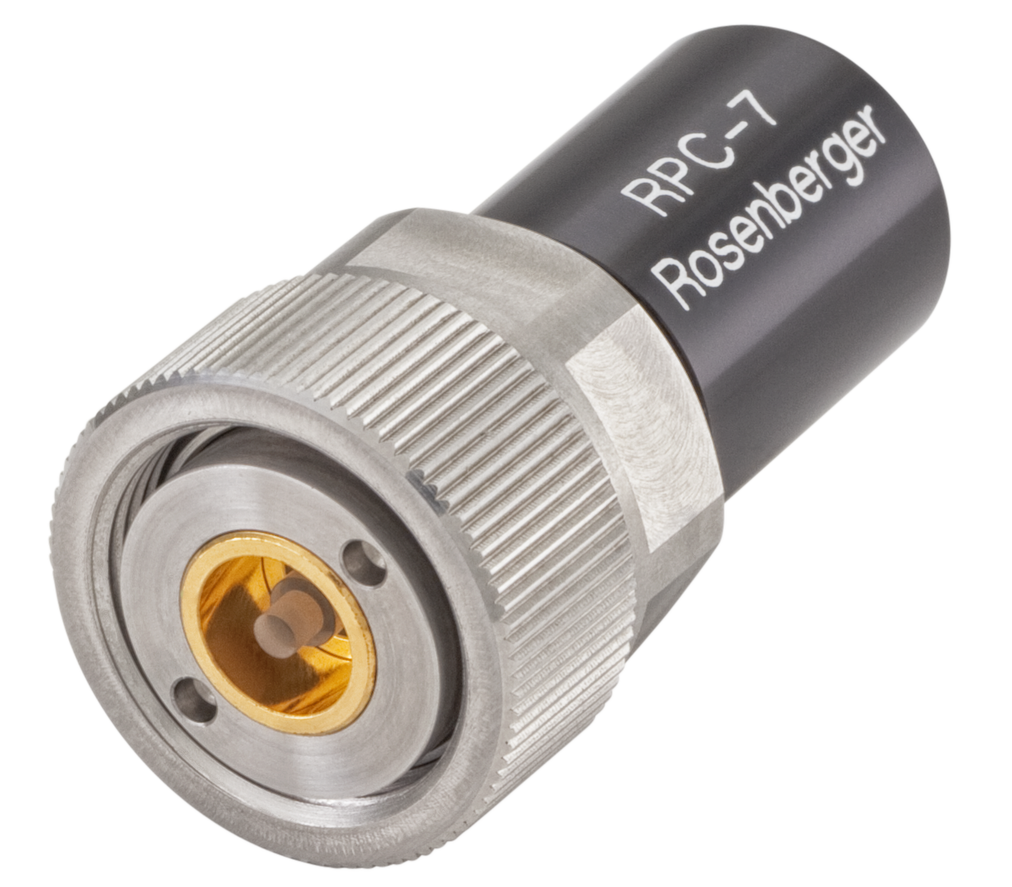

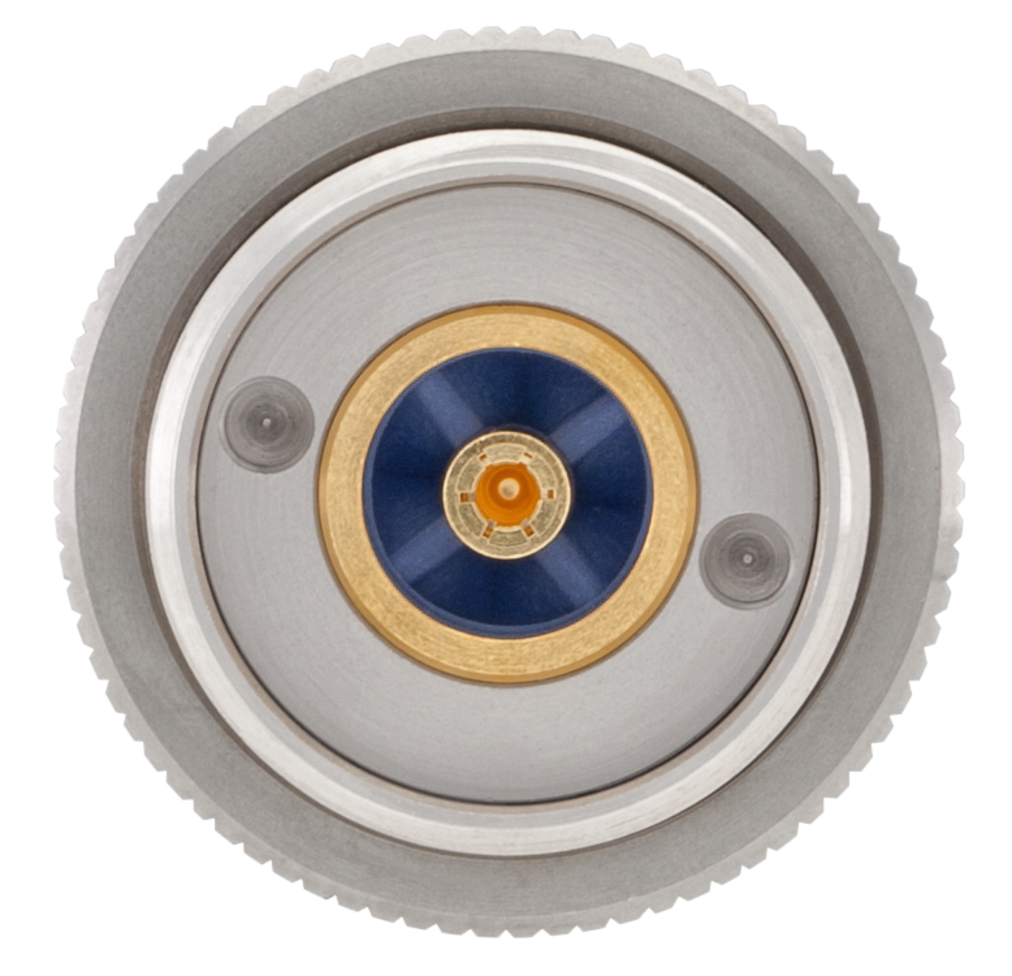

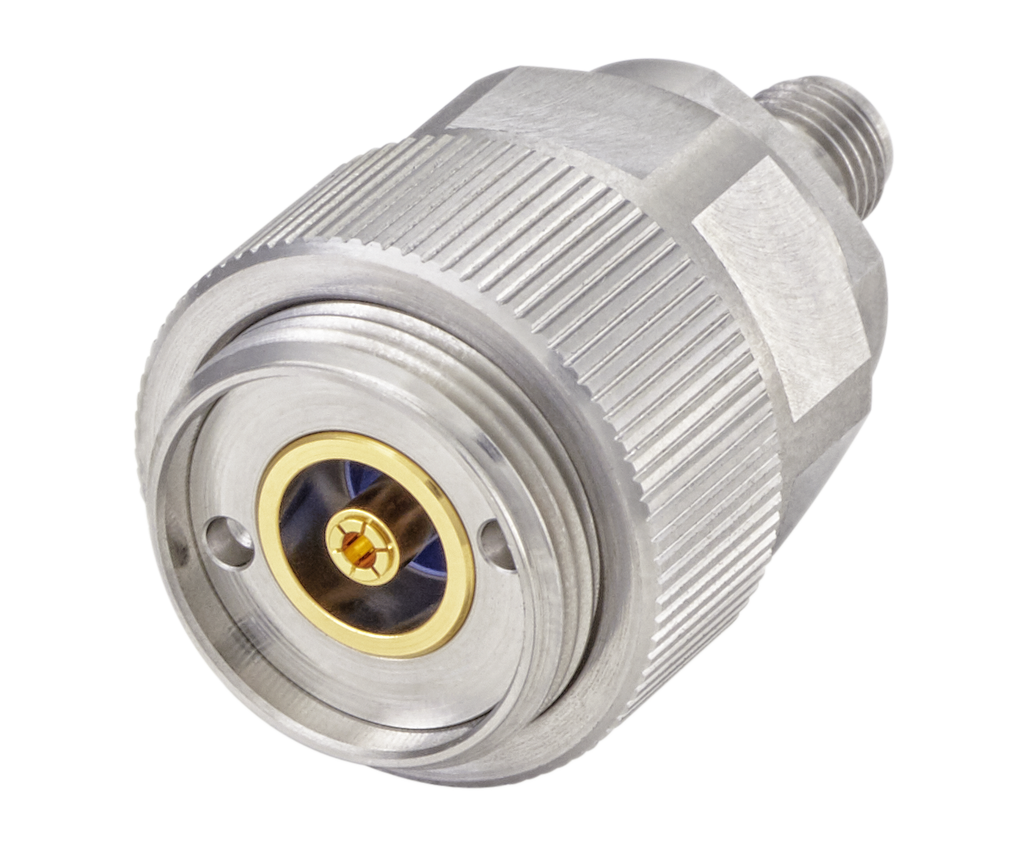

Rosenberger RPC-7 “hermaphroditic” connectors with 7 mm diameter at outer contact are designed for precision measurements up to 18 GHz and are suitable for semi-rigid cables and microwave components. Mating electrically with center and outer conductor by end-surface (butt) contact, the mechanical connection is designed as a counter-sinkable threaded socket. For total flexibility, these low reflection connectors are intermateable with all common 7 mm series connectors including APC-7, PC-7, GPC-7 or Precifix AA. Furthermore, RPC-7 and RPC-N connector heads are interchangeable using the same bead type. The wide product range comprises connectors and connector heads, adaptors, interchangeable port connectors, airlines as well as test & measurement accessories such as RPC-7 calibration and verification kits, test cables, attenuators or measurement equipment (open – short – load).
- Impedance 50 Ω
- Interface according to IEC 457-2
- Frequency range DC up to 18 GHz
- Return loss > 32 dB @ DC – 18 GHz
- Mating cycles > 5000
- Air dielectric with PPE/PTFE bead
Specification Sheet
Rosenberger HFM® is the next generation of coaxial connectors for the automotive industry. For frequencies up to 15 GHz, the intelligent modular system ensures fast transmission of high data rates up to 20 Gbps. Its innovative design addresses the growing requirement for cost savings as well as reduced weight and size. Delivering space savings of up to 80 % compared to conventional FAKRA connectors, the Rosenberger HFM® connector system allows various modules to be accommodated in the smallest possible footprint.
Item Successfully Added to Cart
Rosenberger provides SMA, BNC and TNC reverse polarity connectors. These coaxial connectors are non-standardized versions, offering interfaces similar to the standard but with center contacts and dielectricum reversed; for use with W-LAN routers when safeguarding against the possibility of incorrect component connection.
Item Successfully Added to Cart
Rosenberger SMB subminiature coaxial connectors suit various applications up to 4 GHz. The snap-on locking mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors can be used in internal devices and cable assemblies. Please note: Rosenberger defines male – female according to the design of center contact.
