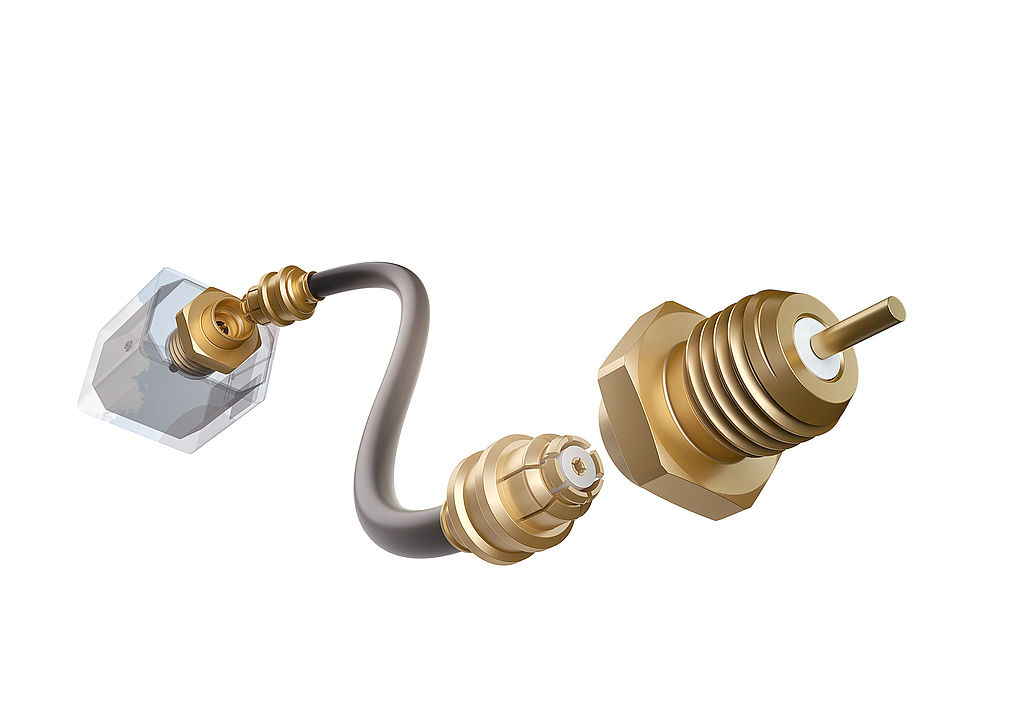

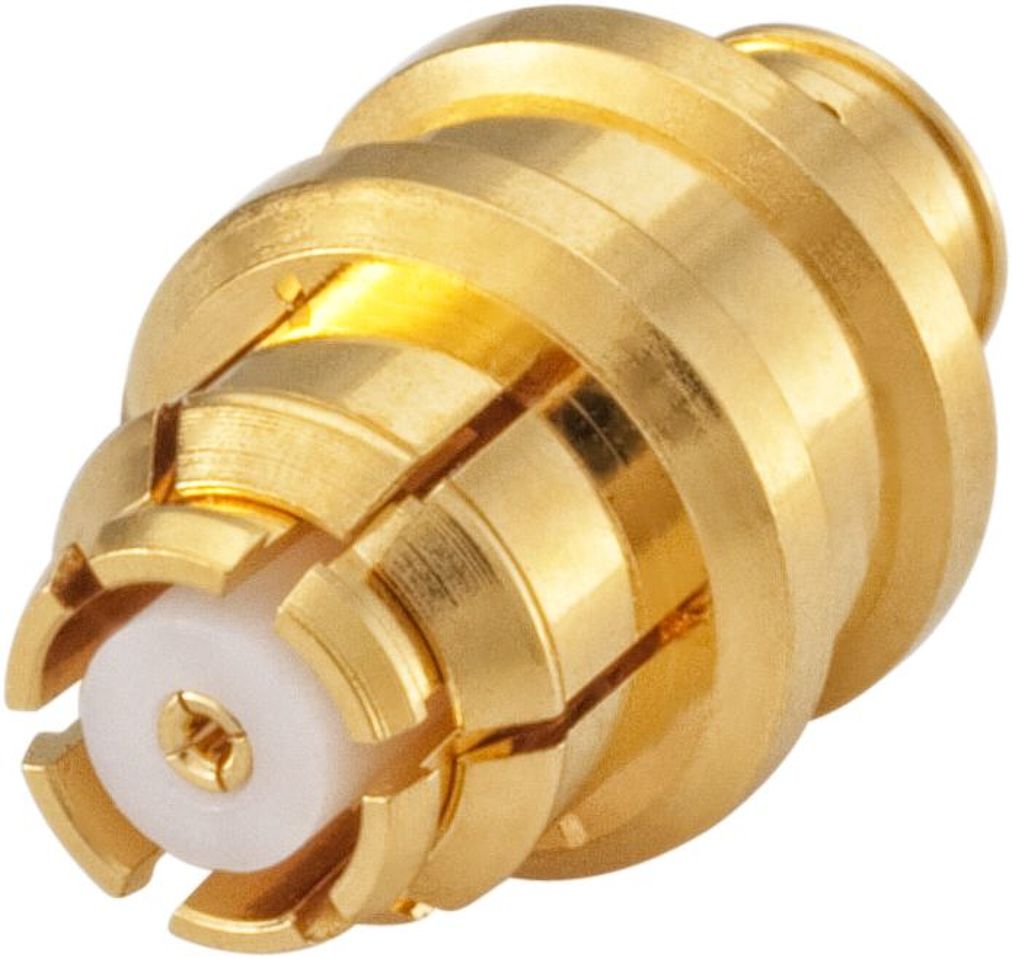

SMP Infinity

Rosenberger H-MTD® is a 360° fully shielded differential connector system for Ethernet applications. The newly developed system has successfully combined high-performance data transmission, of up to 15 GHz or 20 Gbps, in a compact yet robust automotive grade housing. Apart from ensuring high-bitrate data transmission, savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols. Among others, this makes the Rosenberger H-MTD® highly suited for use by those designing solutions for the automotive industries.

Based on the SMA connector standard, Rosenberger QMA connectors are designed for applications up to 18 GHz. The quick-lock mechanism enables easy and reliable connections in the tightest of spaces – primarily in mobile base stations – and 10 times faster compared to SMA offerings. Packing density is also superior to SMA due to the minimum pitch and toolless connection, dispensing with the need for torque spanners for fastening coupling nuts. Rosenberger offers QMA as standard version and with plastic quick-lock mechanisms in four different color codings. QMA is not intermateable with SMA.

applications up to 40 GHz. The shortened male pin and fourfold slotted female center contact allow these high-quality connectors to meet the highest levels of reliability and repeatability performance. RPC-2.92 connectors are intermateable with common 2.92, 3.50, SMA, as well as K connectors. The wide product range comprises cable, PCB and panel connectors, adaptors, interchangeable port connectors, attenuators as well as test & measurement accessories. These include RPC-2.92 calibration kits, test cables, opens, shorts, loads, attenuators, airlines or sliding loads. For test & measurement applications in future 5G networks the frequency range of selected RPC-2.92 adaptors, cable assemblies and compact calibration kits has been extended up to 43.5 GHz.

Rosenberger MagCode® PowerSystem and MagCode® PowerSystemPro ensure safe and reliable magnetic connection to 12V and 24V external power sources. This includes ‘cigarette lighter’ receptacles commonly found on many vehicles such as cars, trucks, vans and campers as well as motorcycles and boats.
