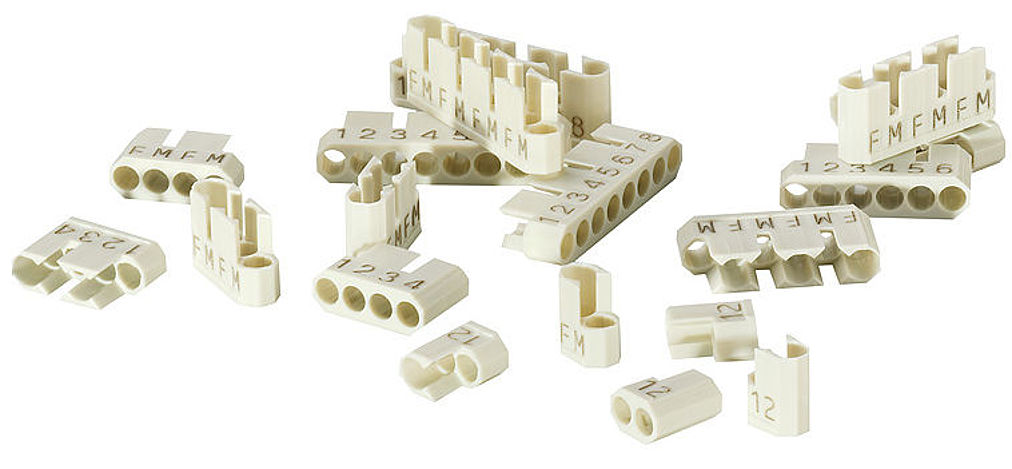

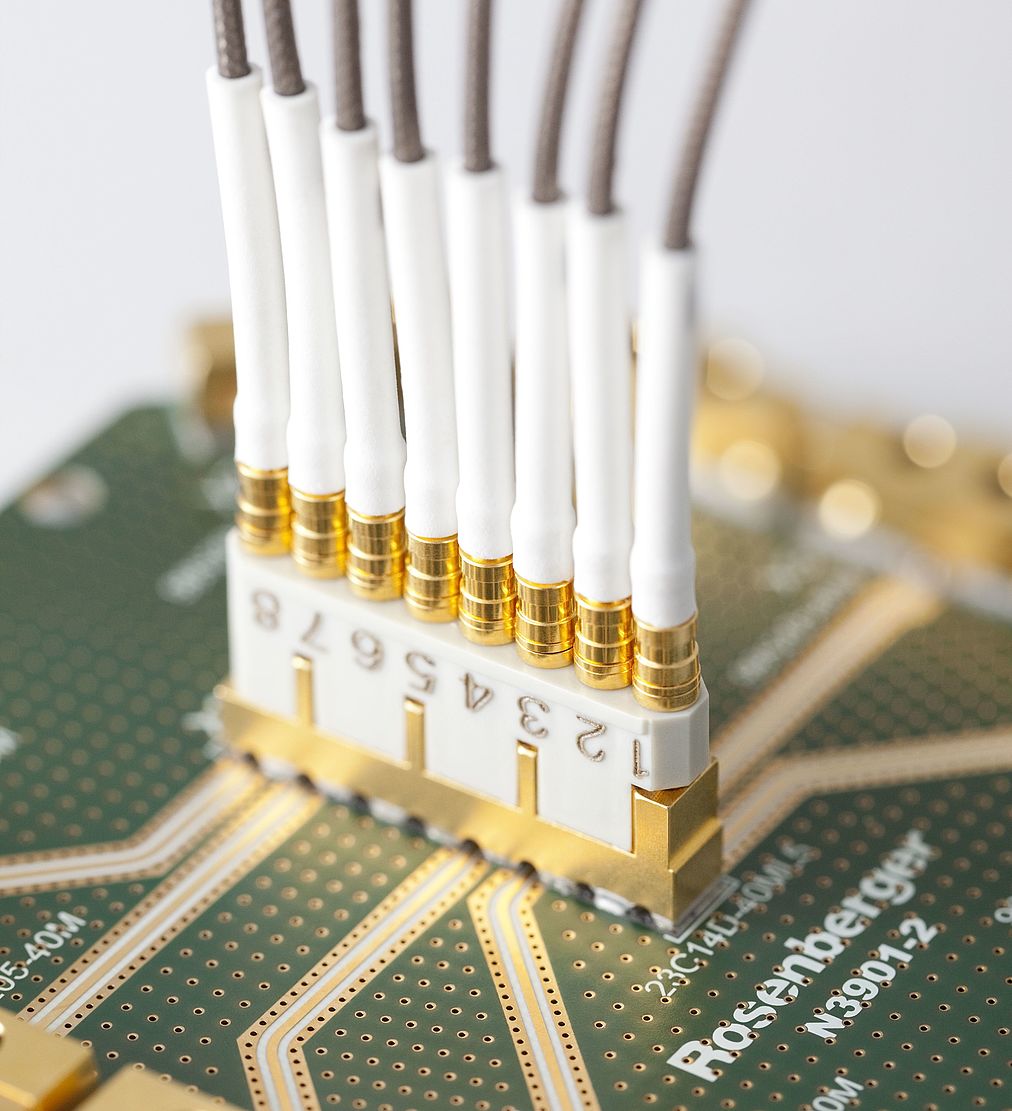

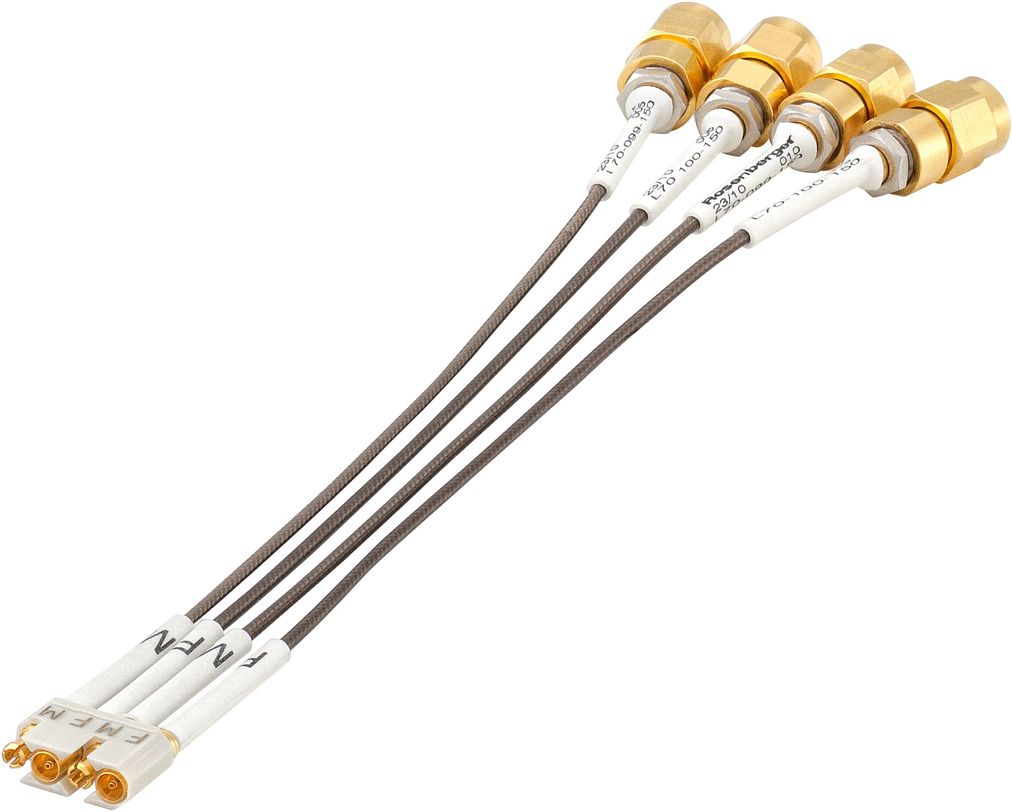

Multiport Mini-Coax

Following the revision of the IEC 61169-24 interface standard in response to the increasing performance demands of the broadcast television sector, Rosenberger has fundamentally revised its F-interface calibration elements. The considerably improved characteristics include an extended frequency range, from DC to 4 GHz up to DC to 6 GHz, and a doubling of mating cycles from 500 to 1000. The new 6 GHz-spectrum F series from Rosenberger comprises calibration adaptors, calibration loads, opens, shorts and loads. A new “full range” calibration adaptor is also available, addressing the extremely wide male connector pin tolerances of 0.64 mm to 1.13 mm.

For ensuring fast and easy connection Rosenberger RoDI® connectors comprise five contacts and a magnetic self-mating locking mechanism. They are ideally suited to diagnostic and data transfer in building services, industrial control and bus systems, even for use in harsh environments.

Rosenberger’s series VIA® (Variable Interface Adaptor) is designed for board-to-board and board-to-module RF interconnections up to 6 GHz. The innovative mechanical design features both limited detent and smooth bore interfaces integrated into the adaptor – one side of the bullet is responsible for limited detent, the other side for smooth bore. The unique catch mechanism inside the adaptor ensures secure, reliable connection. The Rosenberger VIA® covers all requirements for multiple connections and complex mobile communication solutions in remote radio heads (RRHs) as well as in various other applications.

Rosenberger MagCode® PowerSystem and MagCode® PowerSystemPro ensure safe and reliable magnetic connection to 12V and 24V external power sources. This includes ‘cigarette lighter’ receptacles commonly found on many vehicles such as cars, trucks, vans and campers as well as motorcycles and boats.
