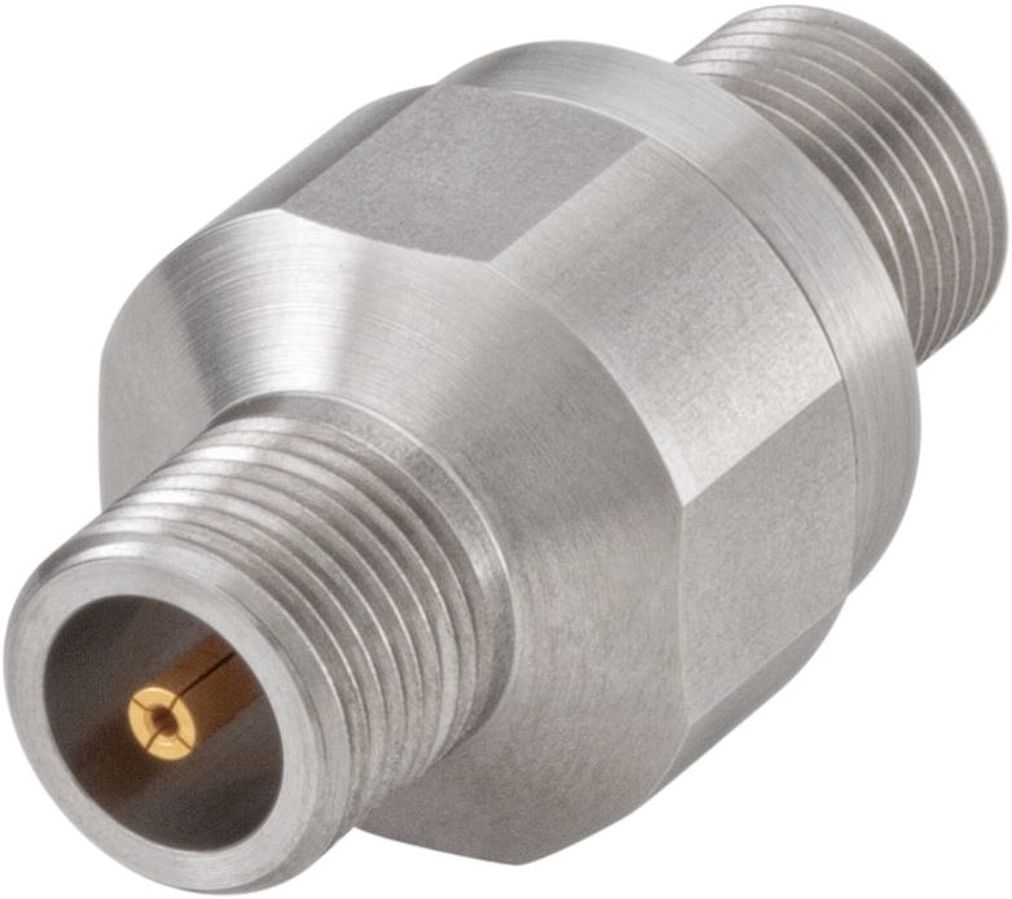

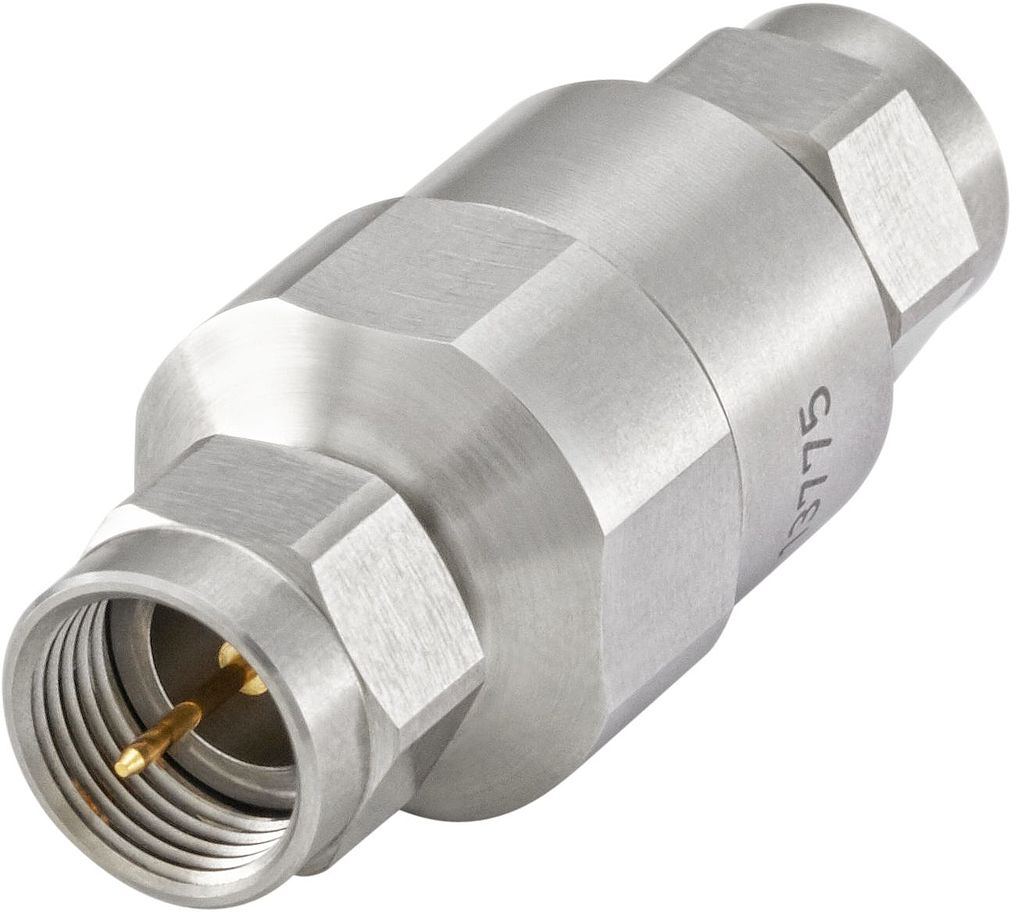

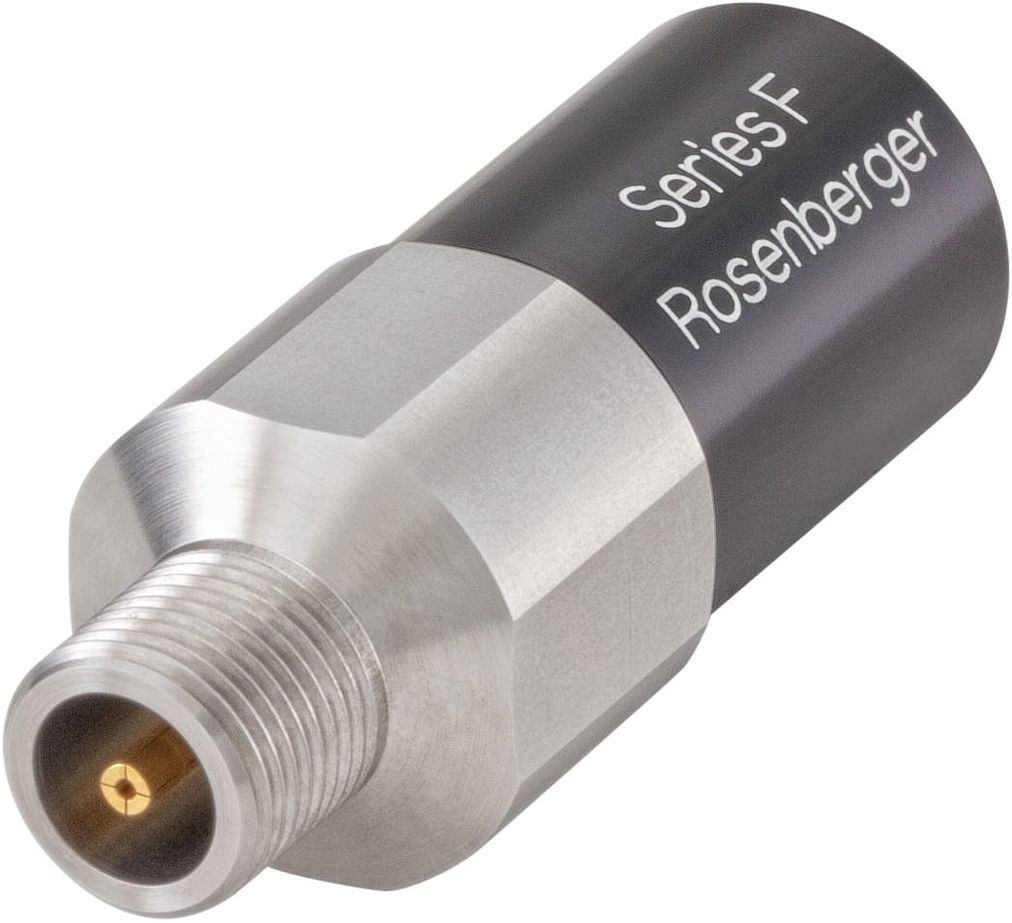

Rosenberger RPC-1.00 precision connectors – with 50 Ω impedance and 1.00 mm outer diameter – can be used for challenging test & measurement applications up to 110 GHz. They are characterized by excellent technical data over the full frequency range, meet the highest levels of reliability and repeatability of performance, and are intermateable with common 1.00 mm connectors. The standard portfolio covers flexible and semi-rigid cable assemblies, adaptors and PCB connectors. Waveguide-to-coaxial adaptors and gauge kits are also available. Customer-specific cable assembly solutions with or without armouring available on request.

Rosenberger’s new RPC-1.35* precision connector series meets the growing demand for precision, high-performance RF-connections up to 90 GHz. The range addresses the expanding market for 5G, industrial sensors in the E-Band, millimeter wave sensors for self-driving vehicles, WLAN IEEE 802.11ax and 802.11ay. RPC-1.35 connectors offer a highly robust mechanical design, minimum 3000 mating cycles, high connector repeatability, and maximum return loss values – ideal for ensuring RF measurements in the E-Band without delays. The product portfolio covers semi-rigid and flexible cable assemblies, PCB connectors, test PCBs, cable connectors, in-series and inter-series adaptors, test ports, floating and waveguide-to-coaxial adaptors as well as gauge and calibration kits. *A working group, comprising PTB (Physikalisch Technische Bundesanstalt), Rosenberger, Rohde & Schwarz and Spinner, designed the new 1.35 mm connector to close the gap between 1.85 mm and 1.00 mm connectors. The interface standardization is in progress.

Rosenberger HVR®200 connectors offer an excellent dimension/performance ratio, combining high current carrying capacity of 210 A at 85 °C while keeping dimensions to a minimum. These two-pin connectors are ideal for connecting elements between a battery and an inverter or for installation in power distribution units (PDU). To suit the relevant installation or usage requirements, the portfolio includes an angled or straight header as well as a straight cable coupler.

The Multi-Power connector for field installation from Rosenberger is unique in terms of user-friendliness. The new assembly concept combines secure and reliable connections with a fast and simple cable assembly. Within shortest time the connector can be assembled on cables with various cross-sections (2x 2.5 mm² to 2x 16 mm²) and jacket diameters (Ø 7 – 21.5 mm). This way, the connector can be flexible used for both low-power and high-power applications (up to 55 A/60 V DC). Regardless the simple assembly process, the connector ensures highest quality for outdoor use, EMI shielding and low contact resistances.
