1.6-5.6 connectors perform at 75 Ohm up to 4/12 GHz and are characterized by high mechanical and electrical stability. They are mainly used for reliable transmission of high bit-rates. IInd and IIIrd generation 1.6-5.6 connectors are intermateable and feature different coupling mechanisms for allowing male types to be connected to all female types. The screw-on coupling version provides positive, familiar mating, while the quick-lock/push-pull coupling version enables quick installation. This series complies with CECC 22240 standards.

4.1-9.5 coaxial connectors, screw-on locking, for frequencies up to 14 GHz, screw-on are robust and weatherproof. With smaller dimensions than 7-16 series solutions, making them ideal for mobile communication environments.

Rosenberger HFM® is the next generation of coaxial connectors for the automotive industry. For frequencies up to 15 GHz, the intelligent modular system ensures fast transmission of high data rates up to 20 Gbps. Its innovative design addresses the growing requirement for cost savings as well as reduced weight and size. Delivering space savings of up to 80 % compared to conventional FAKRA connectors, the Rosenberger HFM® connector system allows various modules to be accommodated in the smallest possible footprint.

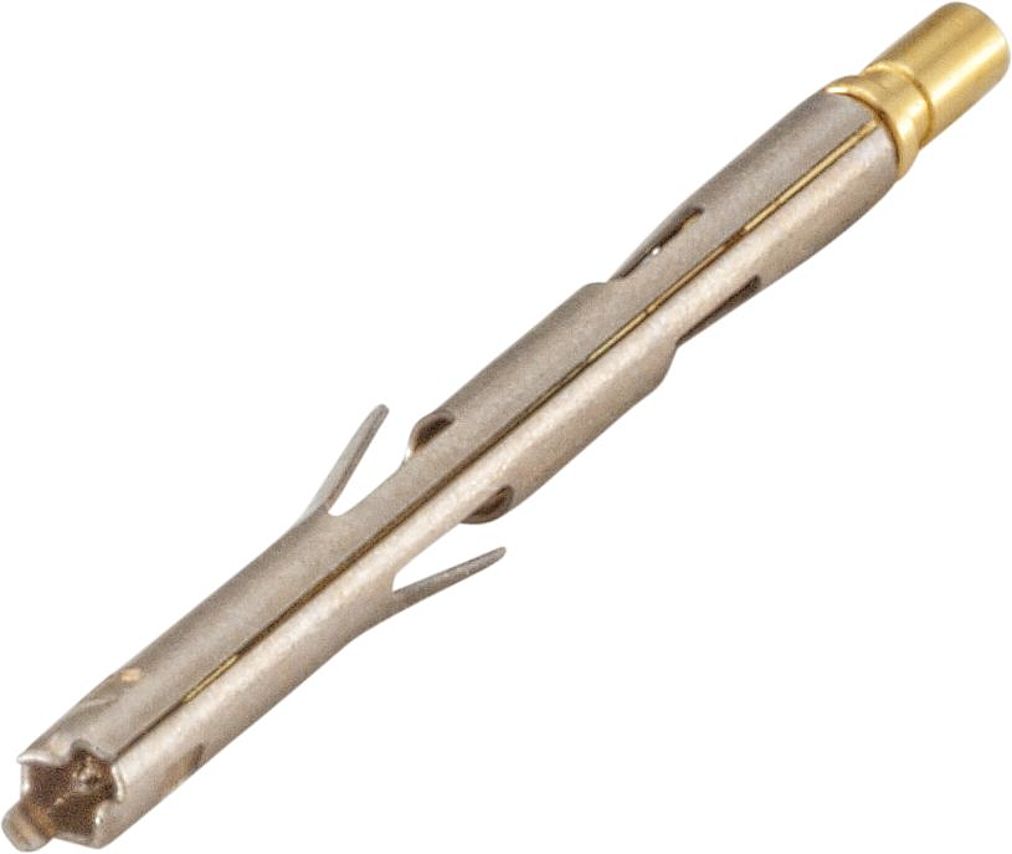

Rosenberger provides a variety of snap-in D-Sub coaxial and power inserts for fast, reliable mixed card edge chassis. Their small dimensions allow high packing densities as well as easy connection. A combination including power connectors is also available on request. D-Sub Coax Inserts and cable connectors 50 Ω are designed for use in mixed card edge connections in accordance to D-Sub. The maximum frequency is approximately 2 GHz. Available on request. Power Inserts meet the requirements of DIN 41626-T1 and are designed for use in mixed card edge connections in accordance to DIN 41612 or D-Sub. Contact current 10 A, 20 A, 30 A, 40 A. Available on request.
