4.1-9.5

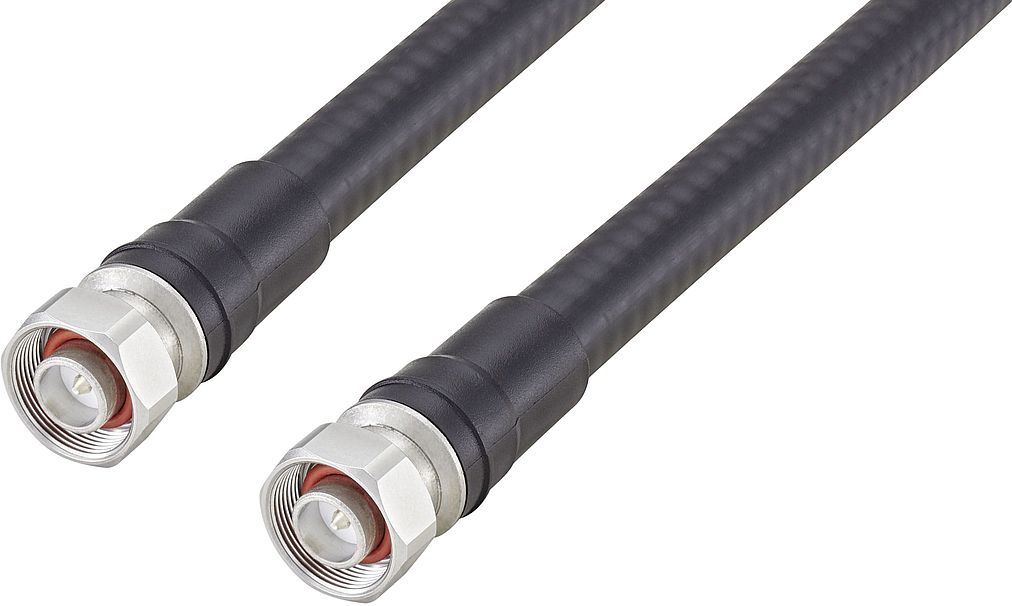

Rosenberger has many years of experience in the manufacture of high quality cable assemblies for a wide variety of industrial test & measurement applications. Our standard microwave cable assemblies for vector network analyzers (VNA), for example, are characterized by their excellent electrical and mechanical performance for frequencies up to 110 GHz. The range includes ultra-low loss cables for antennas or applications with high power requirements; miniature cables for test systems or applications demanding high flexibility; indoor and outdoor cables; specially shielded cables and extremely phase stable cables for test & measurement applications. In defined lengths armoured RFlex™ cables are also available. Customer-specific assemblies and solutions can be ordered on request.

Rosenberger RPC-2.40 connectors – high reliability and outstanding repeatability – are designed for precision test & measurement applications up to 50 GHz. With 50 Ω impedance and 2.40 mm outer conductor, they are intermateable with many other 2.40 mm series connectors such as APC-2.40, OS-50, HP-2.40 or RPC-1.85 and V connectors. A wide range of RPC-2.40 cable and PCB connectors, adaptors and interchangeable port connectors is available as well as test & measurement accessories. These include RPC-2.40 calibration kits, test cables and measurement equipment.

Rosenberger HVR®200 connectors offer an excellent dimension/performance ratio, combining high current carrying capacity of 210 A at 85 °C while keeping dimensions to a minimum. These two-pin connectors are ideal for connecting elements between a battery and an inverter or for installation in power distribution units (PDU). To suit the relevant installation or usage requirements, the portfolio includes an angled or straight header as well as a straight cable coupler.

Compact and lightweight, low-voltage Rosenberger LVR®120 connectors are ideal for such applications as electrical superchargers. Achieving approximately 120 A at 85 °C with a cable cross section of just 16 mm² they are certified to Vibration Severity Level 4. Furthermore, the additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental unmating.
