1.0-2.3 DIN 47297
Ürün Kodu GBLFKW

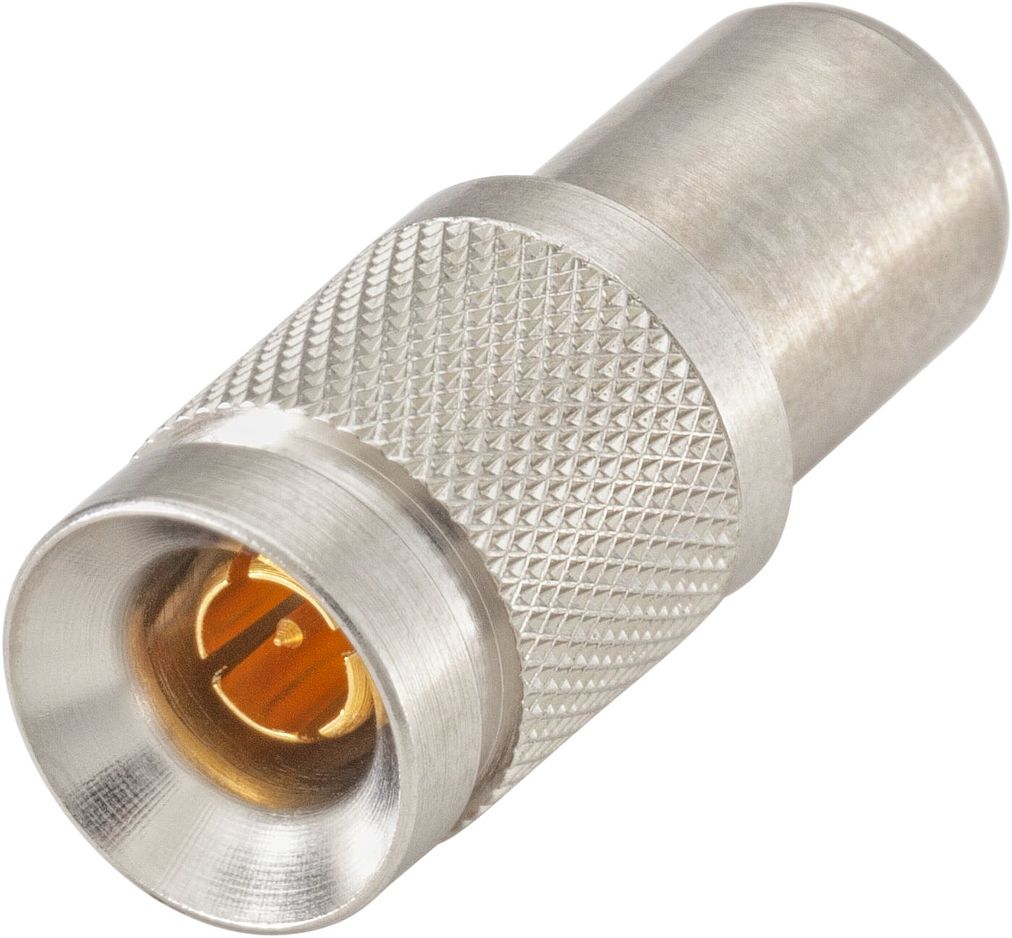

1.0-2.3 (DIN 47297) connectors perform at 50 Ohm up to 10 GHz and are characterized by high mechanical and electrical stability. They are 40 % smaller than the 1.6-5.6 series. The connectors offer various coupling mechanisms where male types can be connected with any female type. The quick-lock/push-pull locking/coupling version allows quick installation. This series complies with CECC 22230 and DIN 47297.
- Impedance 50 Ω
- Interface according CECC 22230, DIN 47297
- Frequency range DC to 10 GHz
- Return loss (cable connector straight)
- ≥ 32 dB @ DC to 1 GHz
- ≥ 23 dB @ 1 GHz to 4 GHz
- ≥ 16 dB @ 4 GHz to 10 GHz
- Mating cycles ≥ 500
Specification Sheet
Highly compact, HVR®420 connectors offer the highest current carrying capacity in the Rosenberger product portfolio. Even the 95 mm² variant safely enables current transmission of 420 A. Furthermore, the additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental disconnection. Typical applications include supercharging electric vehicle batteries up to 450 kWh.
Ürün Başarıyla Sepete Eklendi
The Multi-Power connector for field installation from Rosenberger is unique in terms of user-friendliness. The new assembly concept combines secure and reliable connections with a fast and simple cable assembly. Within shortest time the connector can be assembled on cables with various cross-sections (2x 2.5 mm² to 2x 16 mm²) and jacket diameters (Ø 7 – 21.5 mm). This way, the connector can be flexible used for both low-power and high-power applications (up to 55 A/60 V DC). Regardless the simple assembly process, the connector ensures highest quality for outdoor use, EMI shielding and low contact resistances.
