Zinc/Zn
Rf Products & Telecom Towers
Test Port Cables & Adaptors
Product code H6ZİCU

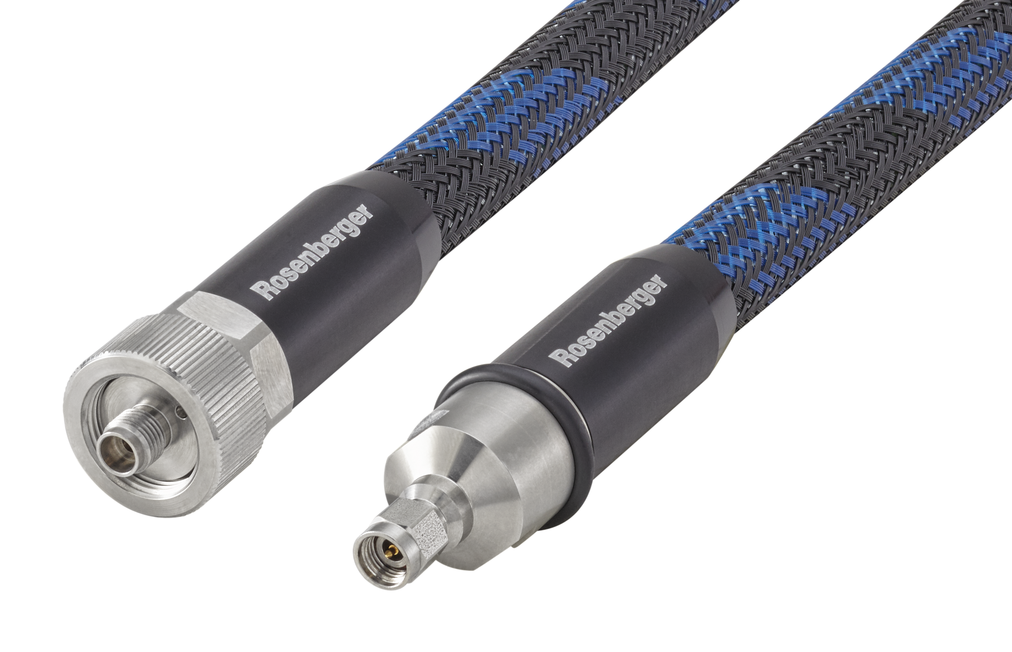

Rosenberger offers a wide test port portfolio of cable assemblies, ruggedized adaptors and an interchangeable port system for vector network analyzers (VNA) up to 90 GHz: Test port cables providing outstanding phase and amplitude stability are also available as sets containing two cables with a standard length of 60 cm each. The range is optimized for frequencies up to 12 GHz, 18 GHz, 26.5 GHz, 40 GHz, 50 GHz, 70 GHz and 90 GHz. VNA test port cables are also available as cable sets, containing two cables of 600 mm standard length, and are supplied in high-quality wooden boxes. Test port adaptors are designed to connect directly to the VNA test port via a ruggedized coupling nut. They are available in the RPC-3.50, RPC-2.92, RPC-2.40, RPC-1.85 and RPC-1.35 connector series. Available as "in series" and "inter series" versions, their ruggedized construction ensures reliable protection of VNA test ports and reduces mechanical abrasion to a minimum. Interchangeable port connectors are designed for test equipment applications using test ports that will be continually mated and re-mated. This has been achieved by the development of an interchangeable port connector system featuring a panel mounting half and an innovative neutral interface, allowing a high number of mating cycles without causing possible damage to the equipment device interface.
- Impedance 50 Ω
- Frequency DC to 90 GHz
- Mating cycles > 500
Specification Sheet
The Rosenberger MagneticUSB is an innovative connection series. All standard USB connectors can be very easily connected to computer or mobile devices thanks to intelligent magnet technology. It can also be disconnected very quickly for optimally protecting USB connections.
Item Successfully Added to Cart
Rosenberger SMB subminiature coaxial connectors suit various applications up to 4 GHz. The snap-on locking mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors can be used in internal devices and cable assemblies. Please note: Rosenberger defines male – female according to the design of center contact.
Item Successfully Added to Cart
Rosenberger provides floating test adaptors for a number of standard RF test interfaces. Due to their self-finding design they are suitable for automated testing processes in laboratories, e.g. of couplers, splitters, antennas and other high-frequency devices. Radial and axial misalignment ensures safe contact with the DUT – without reducing the performance. The self-finding construction makes fast and easy connecting and disconnection processes – which means significant time and cost reductions.
Item Successfully Added to Cart
Rosenberger desktop analyzers are portable and flexible for R&D and test labs. The budget friendly broadband base unit concept offers maximum flexibility to add any other filter unit in the range of 700 to 2700 MHz to the base unit. It allows continuous flexibility in an ever changing environment.
