Floating Test Adaptors

The Rosenberger Magnetic RJ45 is an innovative magnetic connector solution for Ethernet connections. Ideal for applications where frequent connections and disconnections are necessary, the unique self-mating and locking magnetic plug ensures the right connection every time – even in the most inaccessible places. Ease of cleaning of the RJ45 components, a robust housing and the plug-in processes using magnets make the product a highly durable solution. The usual features such as ease of termination, high number of mating cycles, and combined power and LAN connections all come as standard.

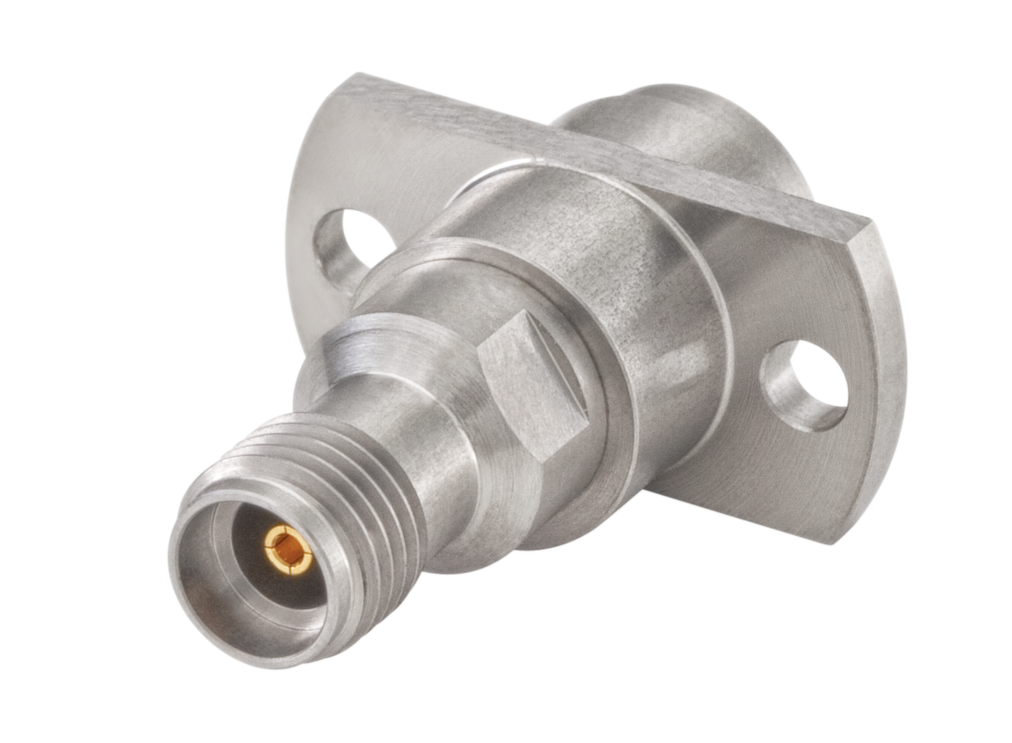

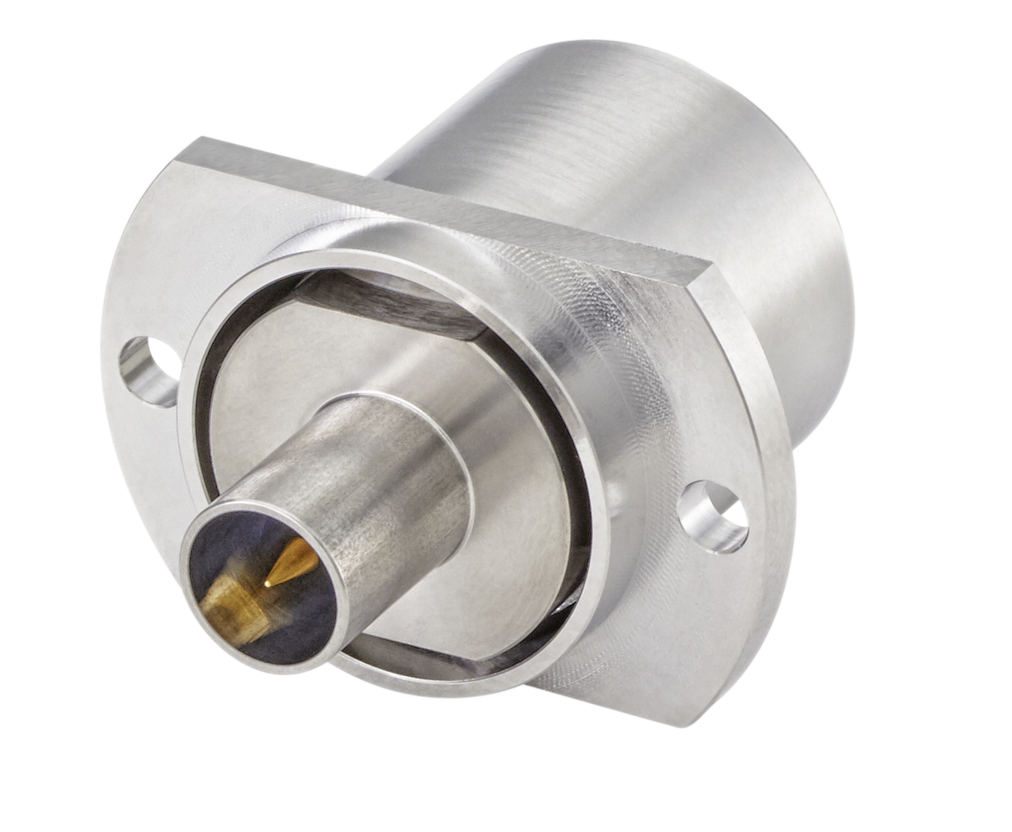

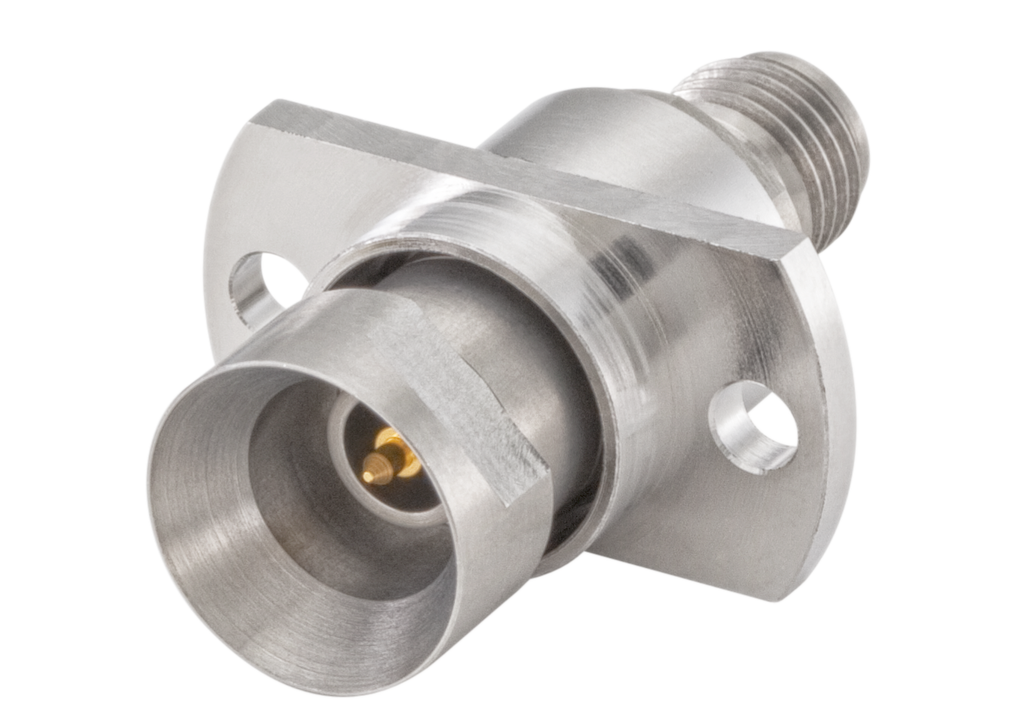

The Rosenberger RPC-SL series are interchangeable port connector systems for use with test equipment where test ports are frequently mated and re-mated. Under such heavy usage, Rosenberger RPC-SL interchangeable port connectors allow the equipment/device interface to be fully protected from potential damage, avoiding the risk of costly repairs. The RPC-SL port connector includes a panel mounting half and a sexless interface which features two spring-loaded butt contacts. This ensures no wear occurs during mating and eliminates the possibility of accidental damage from mismatching of connector halves. Furthermore, the interface between the panel mount and the adaptor is slotted, preventing the mating faces from rotating and possible damage. The RPC-SL portfolio offers both 26.5 GHz and 40 GHz versions. While adaptors can be interchanged and are available in different connector series, the connector heads in these two ranges are not compatible and can only be used with their own system.
