Rf Products & Telecom Towers
Compact Calibration Kits
Product code GTFZEZ

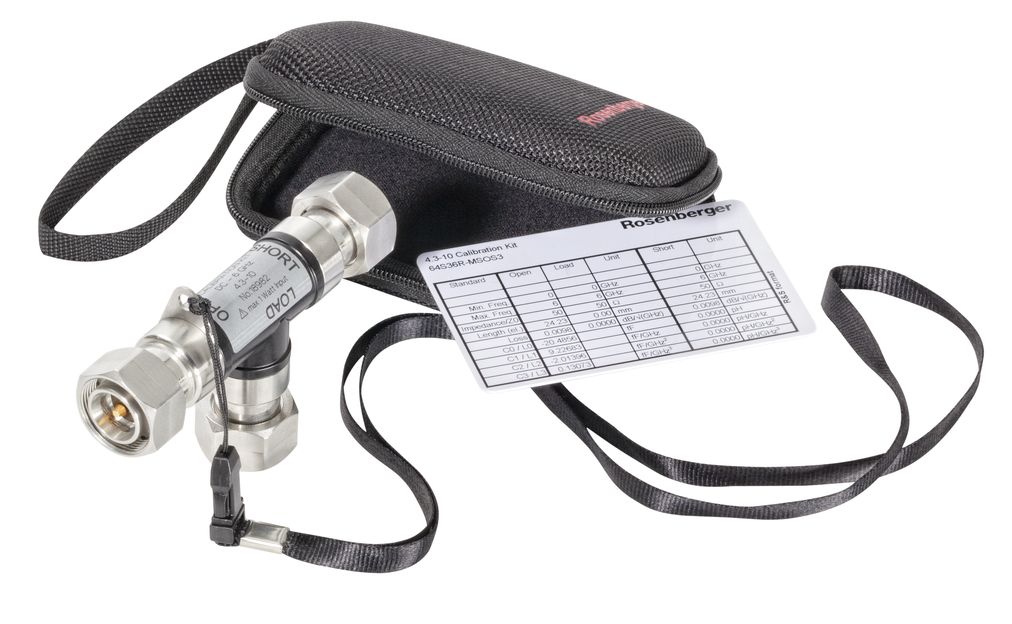

Rosenberger provides a wide range of compact calibration kits in various series for MSOT (4-in-1) and MSO (3-in-1) calibrations. Compact calibration kits combine all necessary calibration standards in one unit and can be applied for MSO calibrations (3-in-1, open, short, load) of single port vector network analyzers and MSOT calibrations (4-in-1, open, short, load, thru) of 2- or more-port vector network analyzers. All compact calibration kits come in a hardshell case with a lanyard and with general coefficients on a standard definition card.
Features
- MSOT

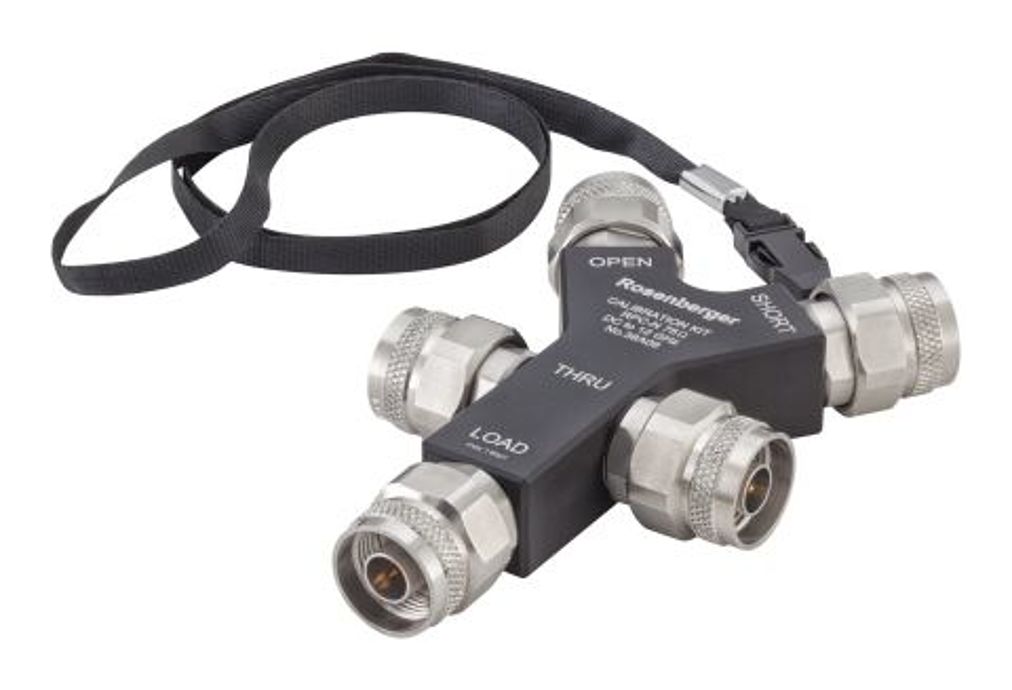

- The 4-in-1 mechanical calibration kits combine an open, short, load and thru element in a compact unit for a complete MSOT calibration of two or more port vector network analyzers
- MSO
- The 3-in-1 mechanical calibration kits combine an open, short and load in a compact unit for a complete MSO calibration of single port vector network analyzers
Specification Sheet
Electric Vehicles (LEV) including e-bikes, e-scooters and pedelecs as well as for UGVs and drones. Providing fast and reliable magnetic connection, these are particularly suited to data communication and power transmission of voltages up to 60 V and current loads up to 40 A. The magnetic locking and precision self-mating capability prevents any accidental or forced disconnection from damaging the connector or the LEV. Furthermore, the high tolerance pin and socket design permits a large number of mating cycles. The RoPD® connection system is ideal for many LEV connection applications – including battery changing and charging – where frequent connection and disconnection is required. The four data contacts and two power transmission pins make a hot-plug capability unnecessary as the data contacts activate the power following connection. For added flexibility the data contacts can be used as a BUS system with an additional supply voltage. Versions of the RoPD® system are also available for EnergyBus applications.
Item Successfully Added to Cart
Rosenberger’s series VIA® (Variable Interface Adaptor) is designed for board-to-board and board-to-module RF interconnections up to 6 GHz. The innovative mechanical design features both limited detent and smooth bore interfaces integrated into the adaptor – one side of the bullet is responsible for limited detent, the other side for smooth bore. The unique catch mechanism inside the adaptor ensures secure, reliable connection. The Rosenberger VIA® covers all requirements for multiple connections and complex mobile communication solutions in remote radio heads (RRHs) as well as in various other applications.
Item Successfully Added to Cart
Item Successfully Added to Cart
Rosenberger connectors are designed for ease of attachment while providing consistent industry leading performance. The connectors have excellent mechanical and environmental properties that ensure long-term durability and performance both in indoor and outdoor environments. All Rosenberger connectors are coated with a specially selected flash white bronze over silver plating. This coating is specifically selected to provide protection against oxidation while delivering exceptional performance and electrical conductivity.
