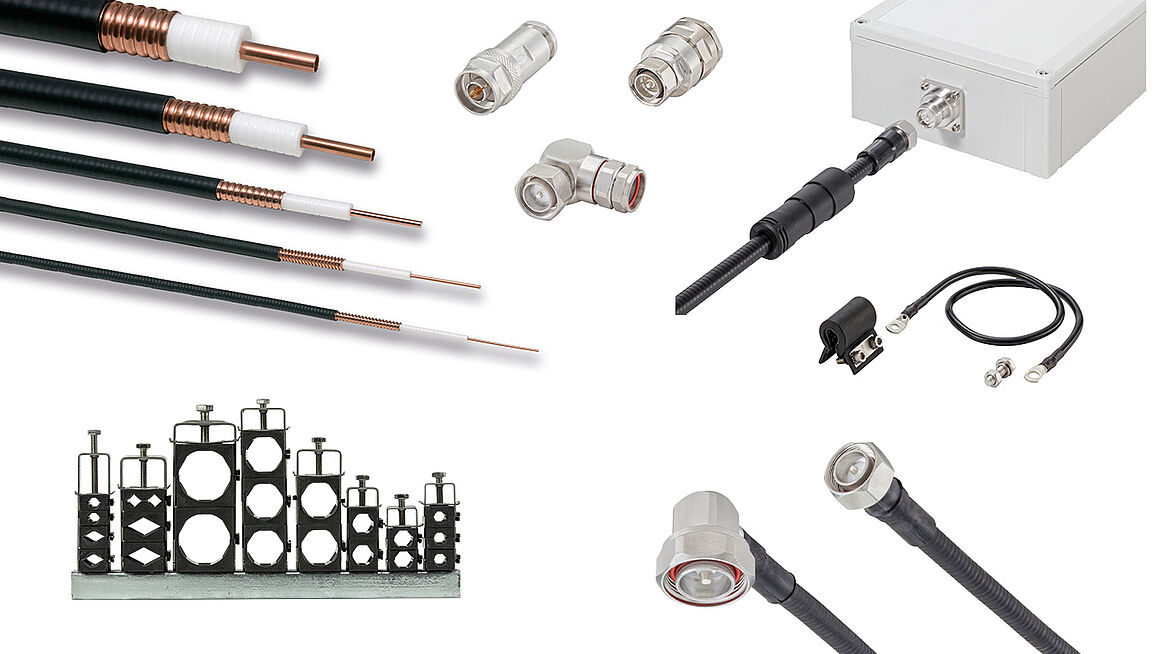

Coax Feeders, Jumpers & Connectors

For ensuring fast and easy connection Rosenberger RoDI® connectors comprise five contacts and a magnetic self-mating locking mechanism. They are ideally suited to diagnostic and data transfer in building services, industrial control and bus systems, even for use in harsh environments.

Rosenberger coaxial jumpers have been designed using the many years of experience gained by Rosenberger engineers in this field. The unique knowledge of designing and manufacturing world-leading PIM testing equipment is directly reflected in the jumpers. Rosenberger jumpers have the industry-best PIM levels: -117 dBm / -160 dBc @ 2 x 20 W (typ. -120 dBm / -163 dBc @ 2 x 20 W). These excellent levels are guaranteed for every assembly that leaves the Rosenberger production facility.

The Rosenberger FTTA/PTTA Connectivity Boxes are available in standard and tailor-made designs and configurations, in low or high volumes, to meet OEM or Network Operator requirements as to efficient, reliable and easy-to-deploy connectivity boxes. Rosenberger connectivity boxes, designed and produced in-house at Rosenberger in Germany, provide the best workmanship and highest quality to ensure a long and smooth operation even in the most harsh environments.

Rosenberger offers a wide test port portfolio of cable assemblies, ruggedized adaptors and an interchangeable port system for vector network analyzers (VNA) up to 90 GHz: Test port cables providing outstanding phase and amplitude stability are also available as sets containing two cables with a standard length of 60 cm each. The range is optimized for frequencies up to 12 GHz, 18 GHz, 26.5 GHz, 40 GHz, 50 GHz, 70 GHz and 90 GHz. VNA test port cables are also available as cable sets, containing two cables of 600 mm standard length, and are supplied in high-quality wooden boxes. Test port adaptors are designed to connect directly to the VNA test port via a ruggedized coupling nut. They are available in the RPC-3.50, RPC-2.92, RPC-2.40, RPC-1.85 and RPC-1.35 connector series. Available as "in series" and "inter series" versions, their ruggedized construction ensures reliable protection of VNA test ports and reduces mechanical abrasion to a minimum. Interchangeable port connectors are designed for test equipment applications using test ports that will be continually mated and re-mated. This has been achieved by the development of an interchangeable port connector system featuring a panel mounting half and an innovative neutral interface, allowing a high number of mating cycles without causing possible damage to the equipment device interface.
