Zinc/Zn
Connectors & Adaptors
NEX10®
Product code XQ4QB8

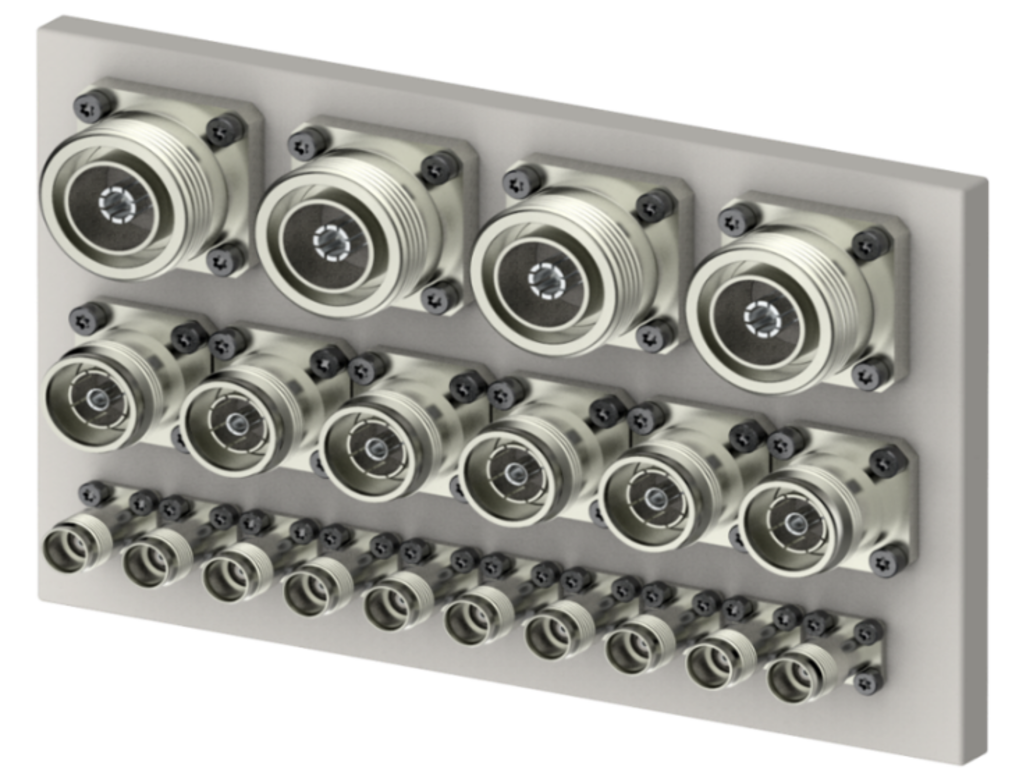

The Rosenberger NEX10® connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20 GHz, the new robust and highly compact NEX10® interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation). Screw-type and a push-pull locking mechanism are available. As a leading global manufacturer of RF products, Rosenberger is an active partner in the NEX10® consortium which is tasked with making the interface a worldwide IEC standard. Designed for upcoming 5G Networks.
- Impedance 50 Ω
- Interface co-developed by leading RF connector manufacturers
- Frequency range DC to 20 GHz
- Return loss (typical)
- DC ≥ 36 dB @ DC to 6 GHz; ≥ 30 dB @ 6 GHz to 10 GHz; ≥ 20 dB @ 10 GHz to 20 GHz
- PIM ≥ 166 dBc @ 2x43dBm
- Degree of Protection IP 68 (@1 m, 24 hours)
- Mating cycles ≥ 100
- Screw-on and push-pull locking mechanism
Specification Sheet
1.0-2.3 (DIN 47297) connectors perform at 50 Ohm up to 10 GHz and are characterized by high mechanical and electrical stability. They are 40 % smaller than the 1.6-5.6 series. The connectors offer various coupling mechanisms where male types can be connected with any female type. The quick-lock/push-pull locking/coupling version allows quick installation. This series complies with CECC 22230 and DIN 47297.
Item Successfully Added to Cart
Rosenberger provides a wide product range of solderless PCB connectors for challenging test & measurement demands and for frequencies up to 110 GHz. These PCB connectors can easily be assembled by using screws. Standard screws are included, optional screws for thicker PCBs are available on request.
