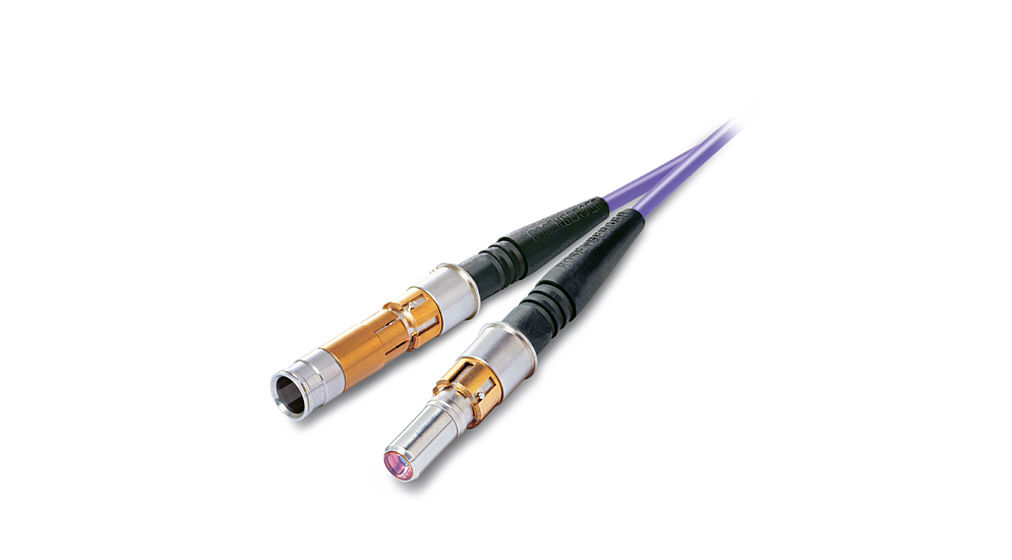

Expanded Beam Connector

Rosenberger high-mating cycle products for applications requiring a robust user interface and extremely high mating cycles up to 100,000 connections. Industrial and consumer applications often require a robust user interface for the connection between a special power supply and the device. In such cases Rosenberger high-mating cycle products are the first choice and are available in standard and customized versions.

Rosenberger SMP Infinity is the innovative and highly compact PCB connector series with a one-step locking mechanism for delivering maximum performance for a wide range of applications up to 40 GHz. The series is available as cable, PCB and bulkhead connectors, as well as test adaptors and cable assemblies.

Compact and lightweight, low-voltage Rosenberger LVR®120 connectors are ideal for such applications as electrical superchargers. Achieving approximately 120 A at 85 °C with a cable cross section of just 16 mm² they are certified to Vibration Severity Level 4. Furthermore, the additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental unmating.
