Zinc/Zn
Connectors & Adaptors
MCX
Product code NOHHT7

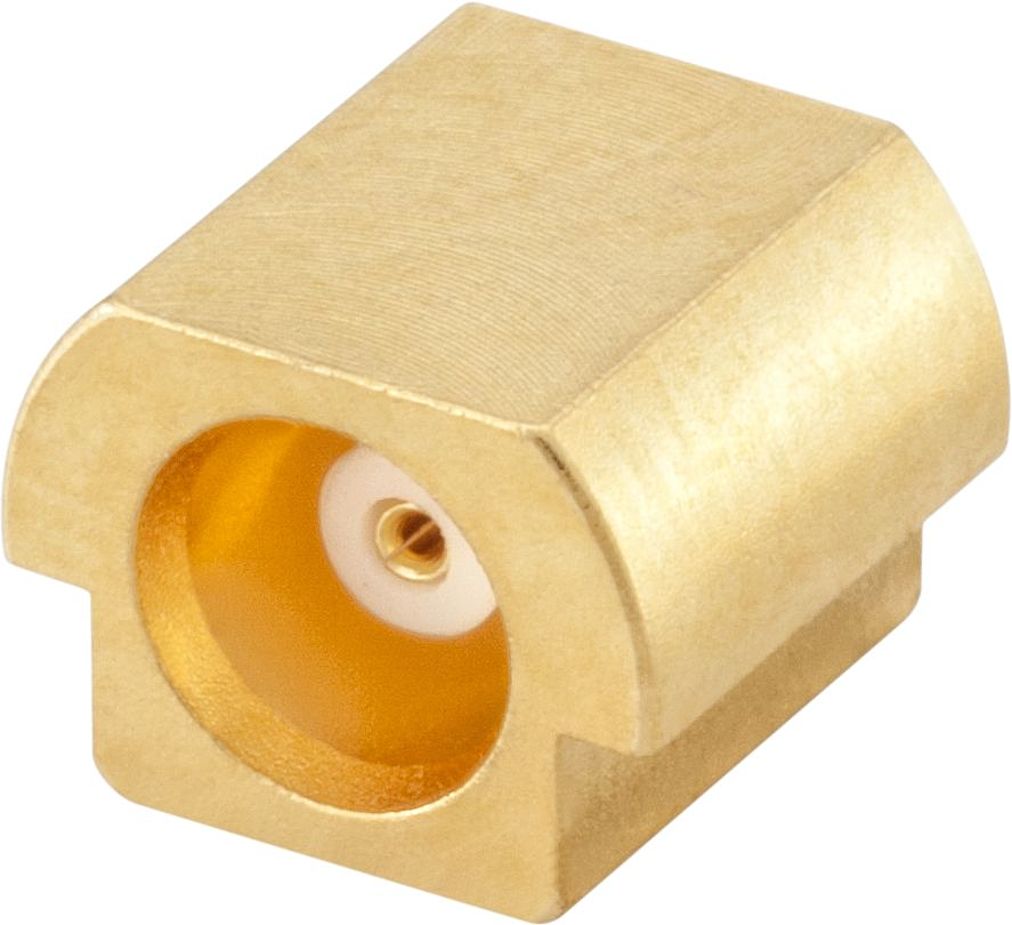

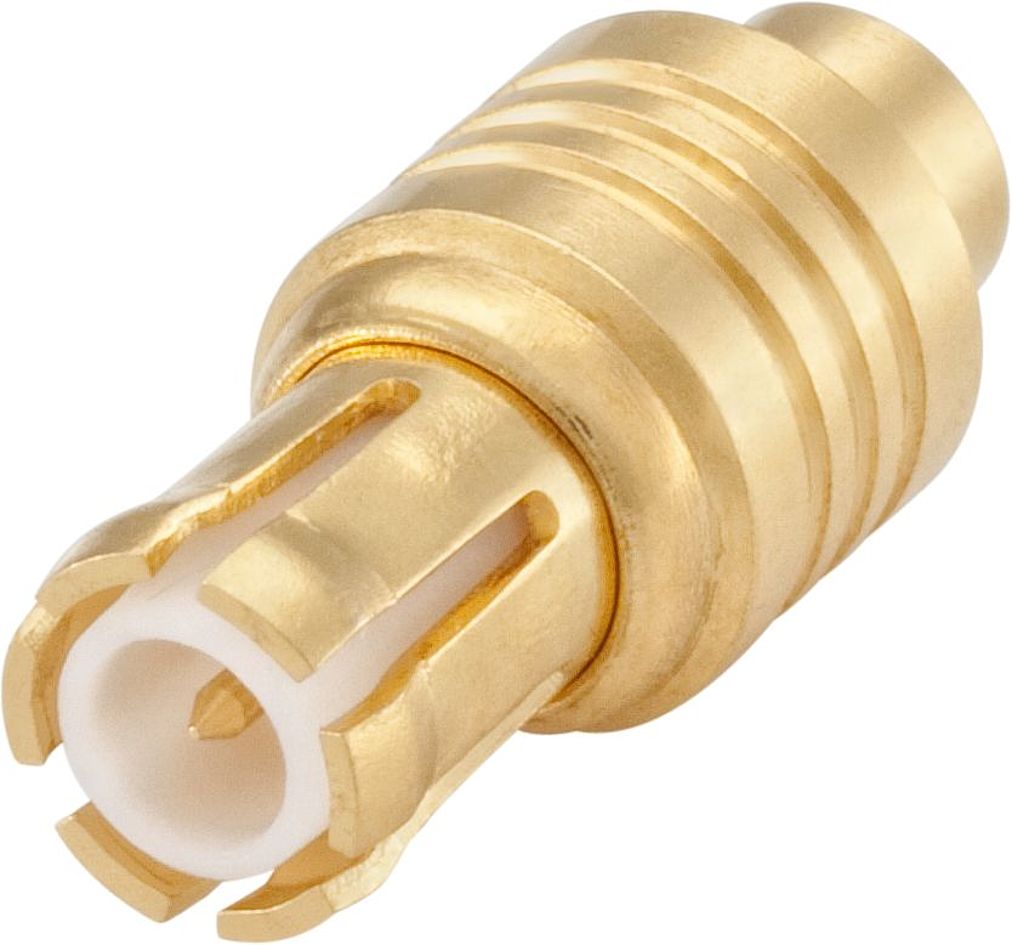

Rosenberger MCX 50 Ω coaxial connectors feature a snap-on locking mechanism. They are mainly applied in RF cable connections up to 6 GHz such as those found in fixed and wireless communication systems. MCX connectors offer high reliability, long service life, as well as easy and fast mounting. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and in blisters. MCX connectors with 75 Ω characteristic impedance are available on request.
- Impedance 50 Ω
- Interface according to IEC 61169-36, CECC 22220
- Frequency range DC up to 6 GHz
- Return loss ≥ 21 dB (typ.)
- Mating cycles ≥ 500
- Snap-on locking mechanism
Rosenberger offers non-magnetic versions of standard connector interfaces including Multiport-Mini-Coax, QMA and SMP. All materials and platings are non-magnetic which is mandatory in certain environments. They are widely used, for example, by the medical industries in MRI (Magnetic Resonance Imaging) equipment as well as in aerospace and other specialized industrial applications. The non-magnetic product range includes standard coaxial connector and cable assemblies. Customized solutions are available upon request.
Item Successfully Added to Cart
Rosenberger provides SMA, BNC and TNC reverse polarity connectors. These coaxial connectors are non-standardized versions, offering interfaces similar to the standard but with center contacts and dielectricum reversed; for use with W-LAN routers when safeguarding against the possibility of incorrect component connection.
Item Successfully Added to Cart
With its high capacity, compact design the Rosenberger DCS is perfect for space-confined high voltage applications where direct connection is a prerequisite. With a cable cross-section of just 70 mm² the current carrying capacity is 340 A at 85 °C, making it ideal for battery charging or enabling direct connection between the battery and motor components used in electric vehicles.
