Zinc/Zn
Connectors & Adaptors
HV Fuse
Product code L7TEQY

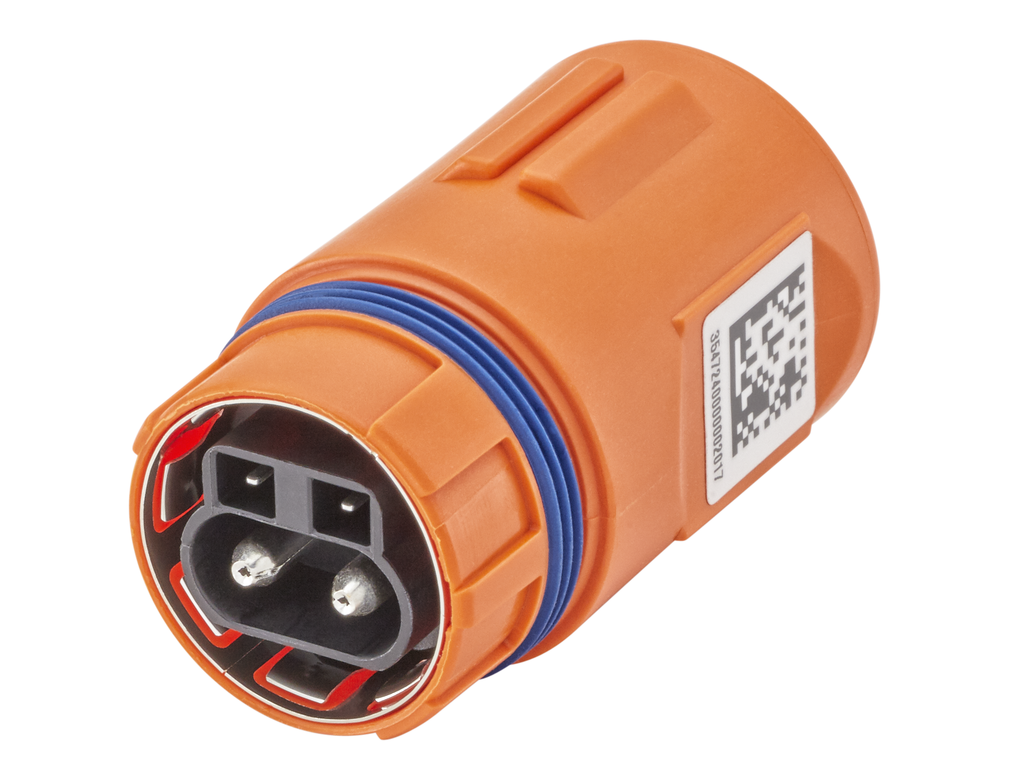

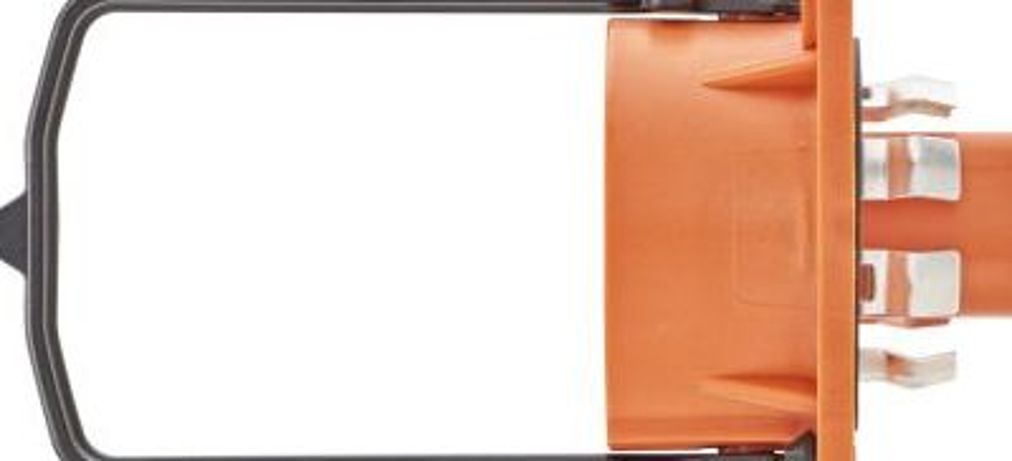

Rosenberger HV fuses ensure the safety of high voltage PDUs used in electric vehicles. Watertight and vibration-proof, they feature a HVIL (high-voltage interlock) and are characterized by their lightweight plastic housing. Fuses and the corresponding insert can easily be replaced without opening the component housing.
Features
- Range 10 - 40 A
- Working voltage max. 450 V DC
- Test voltage 2700 V DC
- Temperatur range -40 °C to +125 °C
- Vibration class acc. to LV215, PG17-II
- IP class mated acc. to IPX4
- Mating cycles ≥ 25
Specification Sheet
Rosenberger SMB subminiature coaxial connectors suit various applications up to 4 GHz. The snap-on locking mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors can be used in internal devices and cable assemblies. Please note: Rosenberger defines male – female according to the design of center contact.
Item Successfully Added to Cart
Rosenberger SMP Infinity is the innovative and highly compact PCB connector series with a one-step locking mechanism for delivering maximum performance for a wide range of applications up to 40 GHz. The series is available as cable, PCB and bulkhead connectors, as well as test adaptors and cable assemblies.
Item Successfully Added to Cart
UHF* coaxial connectors with geared screw locking frontal interlocking teeth and without defined impedance are intended for very low frequency applications up to 300 MHz. They are intermateable with “banana” connectors. *UHF = Ultra High Frequency, when developed in the 1930s, in fact today even wrong.
