RF Ürünleri ve Telekom Kuleleri
RPC-1.35
Ürün Kodu MGDVHT

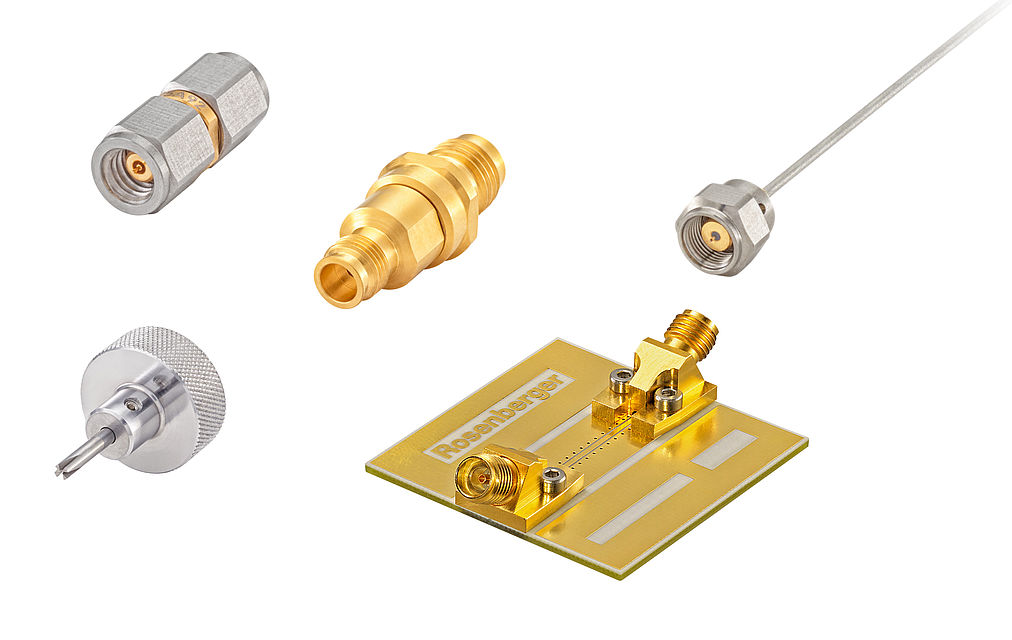

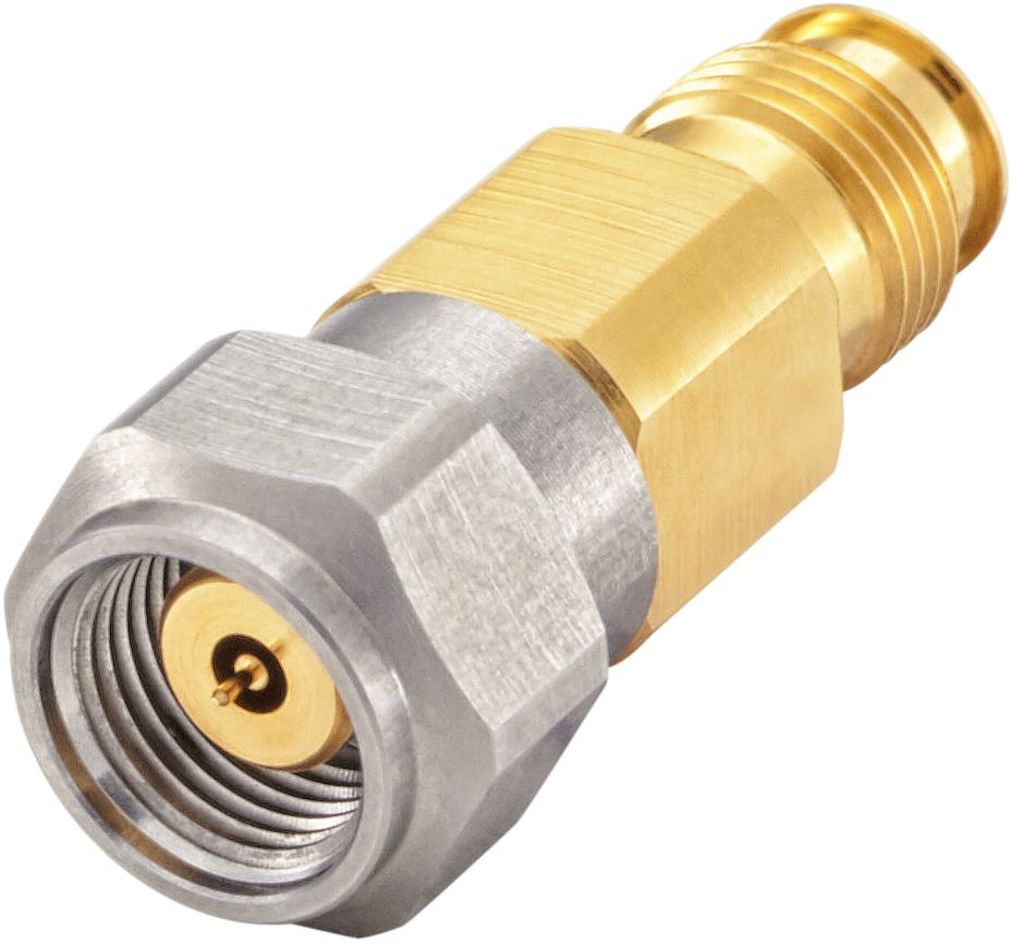

Rosenberger’s new RPC-1.35* precision connector series meets the growing demand for precision, high-performance RF-connections up to 90 GHz. The range addresses the expanding market for 5G, industrial sensors in the E-Band, millimeter wave sensors for self-driving vehicles, WLAN IEEE 802.11ax and 802.11ay. RPC-1.35 connectors offer a highly robust mechanical design, minimum 3000 mating cycles, high connector repeatability, and maximum return loss values – ideal for ensuring RF measurements in the E-Band without delays. The product portfolio covers semi-rigid and flexible cable assemblies, PCB connectors, test PCBs, cable connectors, in-series and inter-series adaptors, test ports, floating and waveguide-to-coaxial adaptors as well as gauge and calibration kits. *A working group, comprising PTB (Physikalisch Technische Bundesanstalt), Rosenberger, Rohde & Schwarz and Spinner, designed the new 1.35 mm connector to close the gap between 1.85 mm and 1.00 mm connectors. The interface standardization is in progress.
- Impedance 50 Ω
- Interface standardization of the 1.35 mm interface is in progress for IEC (IEC 61169-65) and for IEEE (IEEE Std 287)
- Frequency range DC to 90 GHz
- Mating cycles ≥ 3000
- Air dielectric with PEEK bead
- Stainless steel or CuBe outer contact
Specification Sheet
The 8-fiber design reduces costs by making optimum use of all the fibers. PreCONNECT® OCTO is backwards-compatible and can be integrated in existing network structures with duplex technology by means of MTP® harnesses. The elimination of unnecessary interfaces and module cassettes also helps cut costs and reduces channel attenuation. The PreCONNECT® OCTO cabling system enables the optimization of the data transfer in network structures.
Ürün Başarıyla Sepete Eklendi
Rosenberger Longwipe-SMP subminiature coaxial connectors are suited to applications up to 6 GHz and enable axial tolerance compensation of ± 0.7 mm. Full and limited detent options are available as well as smoother bore/catchers mitt, enabling sliding contact with expanded guide-in range.
Ürün Başarıyla Sepete Eklendi
Rosenberger’s series VIA® (Variable Interface Adaptor) is designed for board-to-board and board-to-module RF interconnections up to 6 GHz. The innovative mechanical design features both limited detent and smooth bore interfaces integrated into the adaptor – one side of the bullet is responsible for limited detent, the other side for smooth bore. The unique catch mechanism inside the adaptor ensures secure, reliable connection. The Rosenberger VIA® covers all requirements for multiple connections and complex mobile communication solutions in remote radio heads (RRHs) as well as in various other applications.
Ürün Başarıyla Sepete Eklendi
Rosenberger TNC* coaxial connectors are based on BNC connector characteristics and interface dimensions. However, the screw-on locking mechanism enables reliable, quick and easy interconnection while also allowing their use under higher environmental loads compared to BNC connectors. They are designed for application in various industries including aerospace, telecom and mobile applications. 50 Ω versions up to maximum 10 GHz available 75 Ω versions up to maximum 4 GHz available on request Due to the internationally standardized TNC interface dimensions a perfect 75 Ohm characteristic impedance cannot be realized *TNC = Threaded Neill Concelman / Thread Navy Connector
