Konnektörler & Adaptörler
SMA
Ürün Kodu 2WH3KH

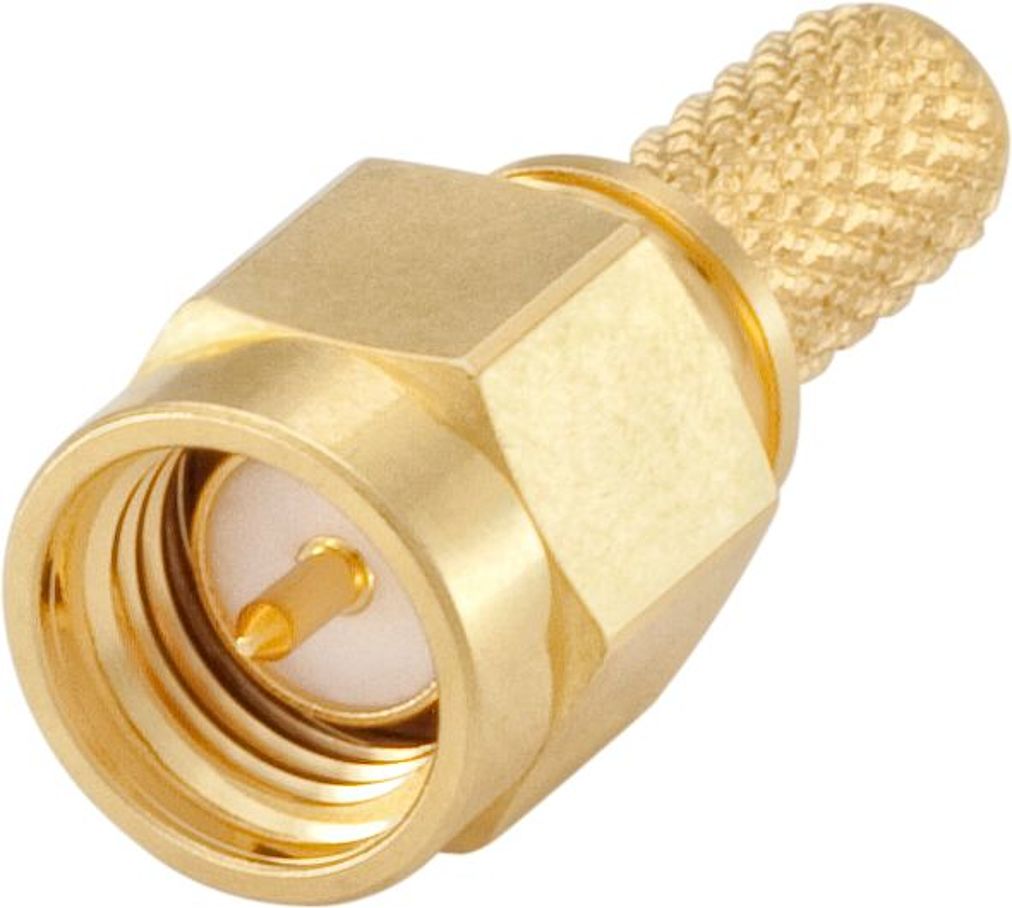

Rosenberger SMA coaxial connectors deliver high-quality and high-performance. These screw-on locking connectors with defined maximum torque ensure high reliability, long service life, high mechanical stability and excellent electrical characteristics. The butted outer contact enables superb frequency ranges up to 18 GHz and return loss performances of ≥ 30 dB. SMA connectors can be applied in various RF applications such as telecommunication and mobile communication, test & measurement equipment and instruments.
- Impedance 50 Ω
- Interface according to IEC 60169-15, EN 122110, MIL-STD-348A, Fig. 310
- Frequency range DC to 18 GHz
- Return loss (cable connector straight) ≥ 30 dB (typ.)
- Mating cycles CuBe/stainless steel ≥ 500; CuZn ≥ 100
- Coupling test torque: CuBe/stainless steel ≥ 1.7 Nm; CuZn ≥ 0.6 Nm
- Coupling torque recommended: CuBe/stainless steel 0.8 Nm to 1.1 Nm; CuZn ≥ 0.5 Nm
- Screw-on locking mechanism
- Butted outer contact
Specification Sheet
MultiMag connectors are designed for small and compact applications in tight spaces. These include, for example, MultiMag 6 for applications such as USB connection and MultiMag 15 for general power and data transmission. These innovative magnetic self-mating connectors automatically discover connections and prevent tearing. They're ideal for products and environments where frequent connection and disconnection is a prerequisite, from medical devices and industrial automation to drones, robots, smart watches and data glasses.
Ürün Başarıyla Sepete Eklendi
Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.
