Konnektörler & Adaptörler
EBC®
Ürün Kodu NQJMGI

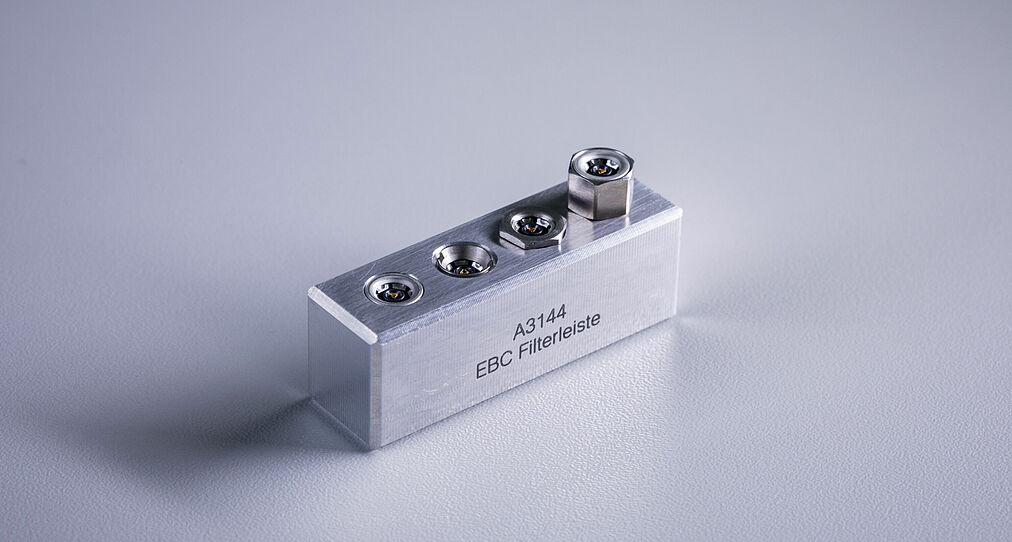

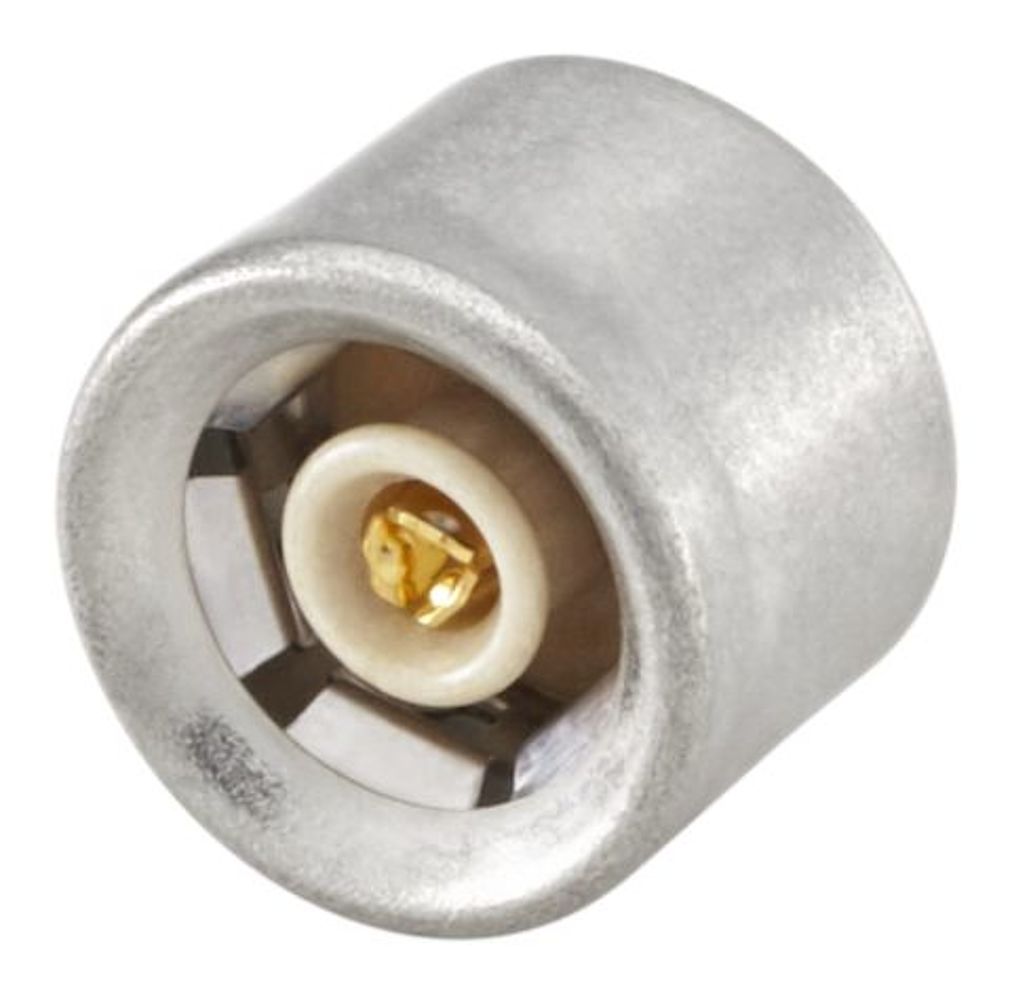

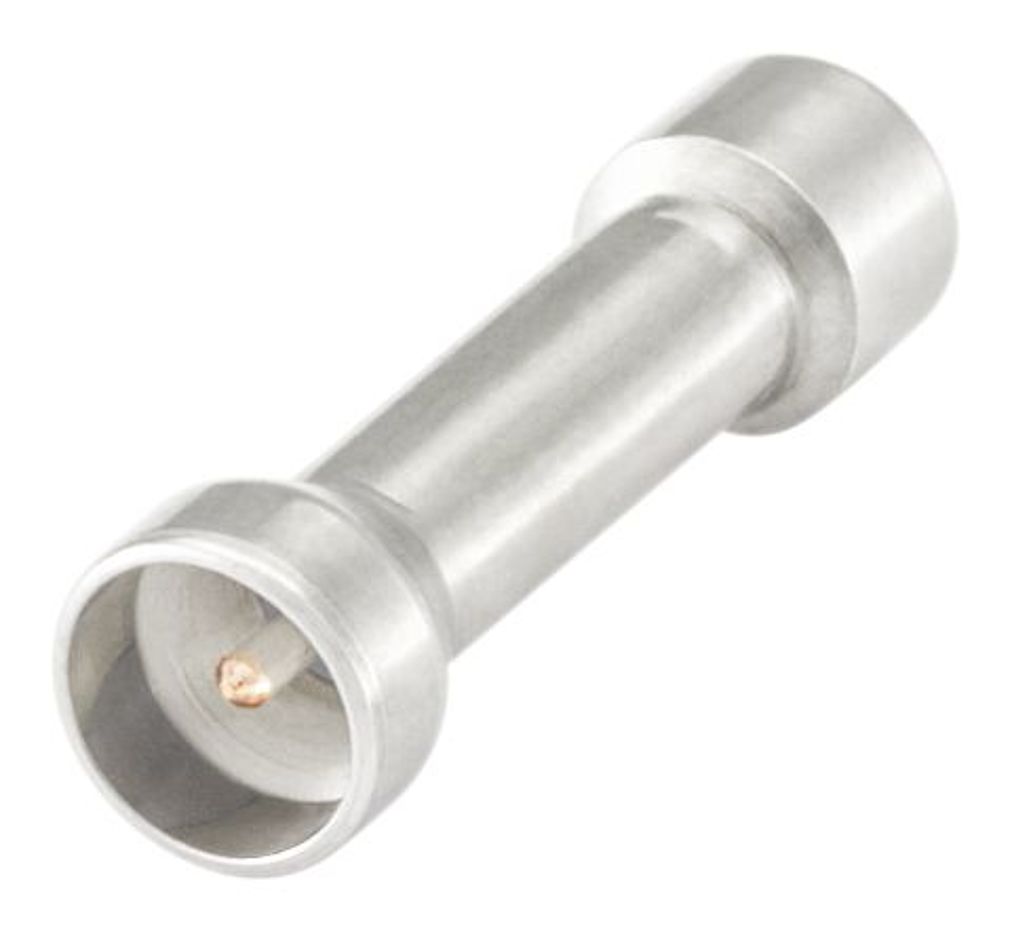

Rosenberger’s new EBC® (Efficient Board Connector) series is the ideal 5G board-to-board and board-to-module RF interconnect solution for active MIMO (Multiple Input Multiple Output) antennas and radios. Outstanding performance, low cost design and high mechanical stability make EBC® the perfect future-proof product for 5G radio interconnections. For applications up to 8 GHz, EBC® connectors fulfill the challenging requirements caused by the exponential data volumes increases in future 5G networks. Essential characteristics include extremely small dimensions, radial and axial misalignments, different holding forces, minimum board-to-board distances, and fast and cost-effective assembly design. A key mechanical design feature is the locating side which is integrated in the bullet. One side has a smooth bore, while the other has a limited-detent design. The single PCB coupler provides a consistent footprint with preloaded outer contacts for ensuring contact optimization, the push/snap-on locking mechanism allows fast and easy disconnection.
- Impedance 50 Ω
- Interface according to Rosenberger EBC®
- Frequency range DC up to 8 GHz
- Return loss ≥ 26 dB @ DC to 6 GHz
- Minimum board-to-board distance 12 mm
- Pitch > 6.8 mm
- Axial misalignment ± 0.8 mm
- Radial misalignment 4°
- Mating cycles ≥ 100
- Push/Snap-on locking mechanism
- Different detent types at bullet: smooth bore and limited detent
Rosenberger FAKRA* industry standard compatible connectors are designed to fulfill the rigorous mechanical and environmental requirements of the automotive industry. Ensuring maximum electrical and mechanical performance, these high quality FAKRA connectors feature specific color coded plastic housings in accordance with the FAKRA coding industry standard. Thirteen distinct mechanical and color codes enable easy identification and unique keying to avoid mis-mating and additional one neutral coding. Combining Rosenberger’s turned part production expertise and FAKRA SF stamped and formed technology these precision manufactured products are ideally suited for process-safe and fully automated assembly by harness makers – leading to a significant reduction in production costs. Rosenberger FAKRA products are compliant to ISO 20860-1 & 2 and USCAR 18 standards.
Ürün Başarıyla Sepete Eklendi
Based on the SMA connector standard, Rosenberger QMA connectors are designed for applications up to 18 GHz. The quick-lock mechanism enables easy and reliable connections in the tightest of spaces – primarily in mobile base stations – and 10 times faster compared to SMA offerings. Packing density is also superior to SMA due to the minimum pitch and toolless connection, dispensing with the need for torque spanners for fastening coupling nuts. Rosenberger offers QMA as standard version and with plastic quick-lock mechanisms in four different color codings. QMA is not intermateable with SMA.
Ürün Başarıyla Sepete Eklendi
Rosenberger HVR®50 connectors are available in straight and angled variants. The additional slide locking mechanism (CPA – Connector Position Assurance) prevents accidental disconnection. Despite their small size these connectors achieve a current capacity of approximately 60 A at 85 °C. HVR®50 connectors are mainly used in ancillary units such as electrical heating systems, air-conditioning units, DC/DC converters, and for charging batteries.
Ürün Başarıyla Sepete Eklendi
The 3-pole HVR®260 connector system for collective shield applications is used to connect electric motors up to a continuous current of 270 A. Despite its lightweight aluminum housing it is capable of operating safely at extreme temperature ranges from -40 °C to +150 °C. It is certified to vibration severity level IV. Customer-specific variants are available on request.
