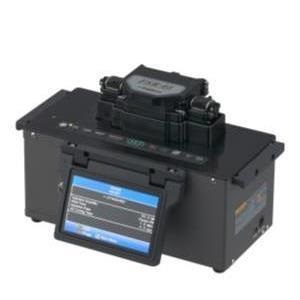

Optical Fiber Recoater FSR-05

The PCS-100 has been designed for stripping polyimide coating optical fibers. Do not attempt to use this machine for other applications. Fujikura Ltd. gives careful consideration and regard to personal injury. Misuse of the machine may result in electric shock, fire and/or serious personal injury.

The CT52 is designed for cleaving silica fiber with 125μm cladding diameter, specially for its short length cleaving capability. Minimum 3mm cleave is possible by up to 900μm fiber coating, while the coating to be clamped.

Nyfors product. The AutoCoater 2 SC™ is used to restore the protective coating on acrylate coated optical fibers in high strength applications. It is fully automatic, allowing for operator skill independent operation in factory environments with high cost and productivity advantages. This modified version of the automatic AutoCoater 2™ is equipped with special clamps for recoating applications where only short lengths of fiber are available. A narrower positioning and shorter distance between the fiber clamps than in the standard version enables clamping and recoating of fibers as short as 124 mm without reducing the recoat length itself.

The Fiber holder FH-40-LT900 is exclusively designed for holding loose tube buffered fiber by Fujikura's fusion splicer,FSM-100 series, FSM-45 series, FSM-40F and FSM-40PM. The FH-40-LT900 holds the loose tube bufferd fiber by tightening a screw in the lid. The FH-40-LT900 is supplied with a pair.
