Zinc/Zn
Rf Products & Telecom Towers

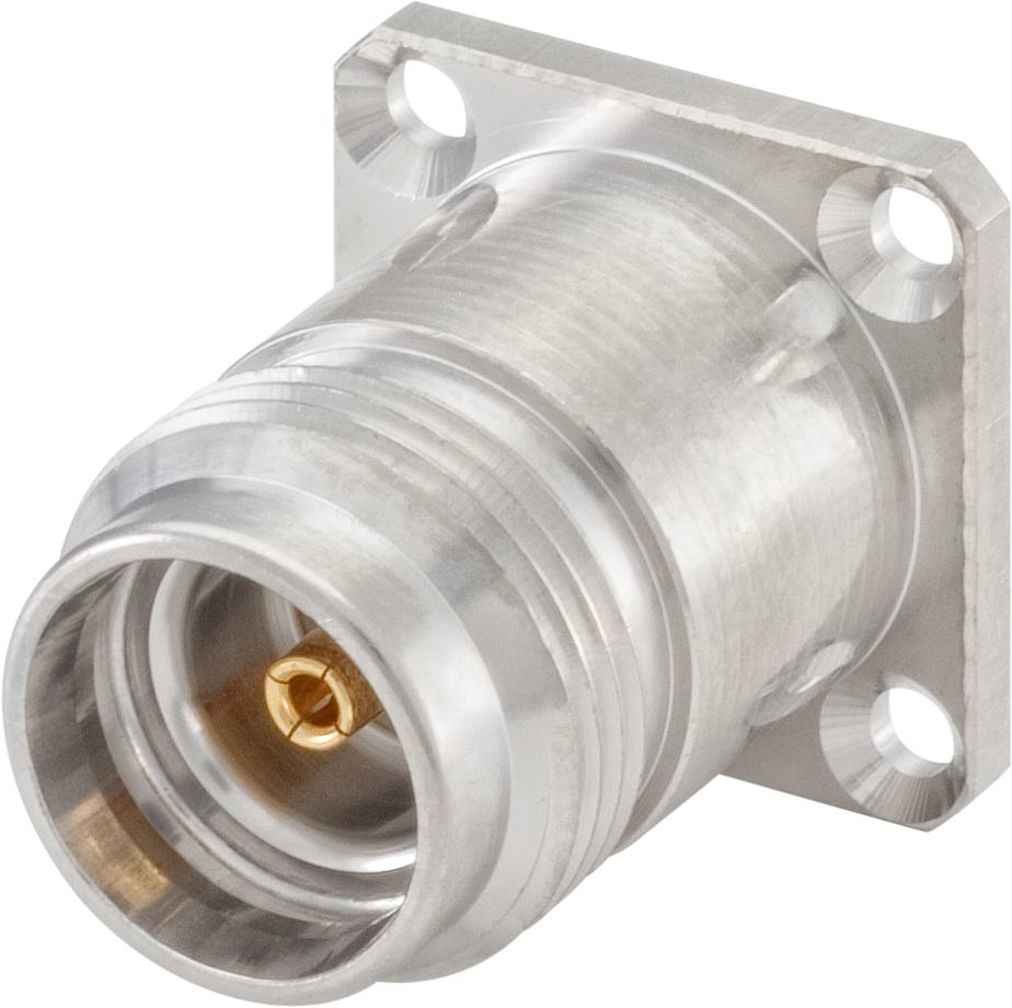

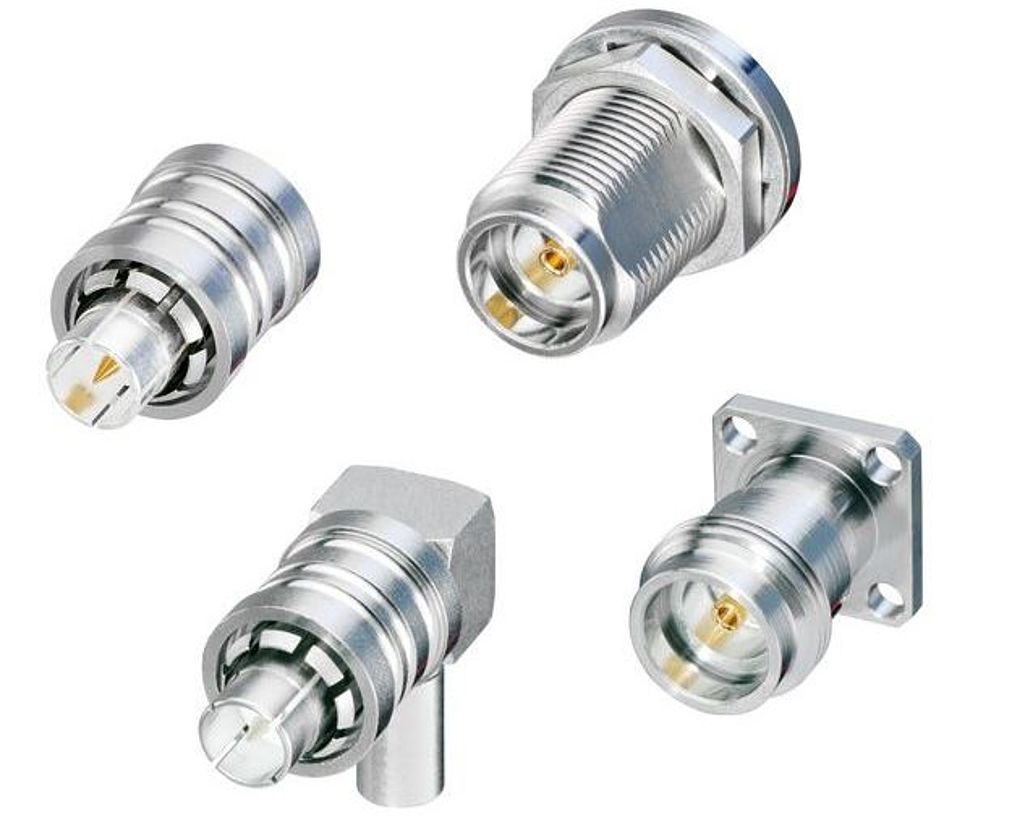

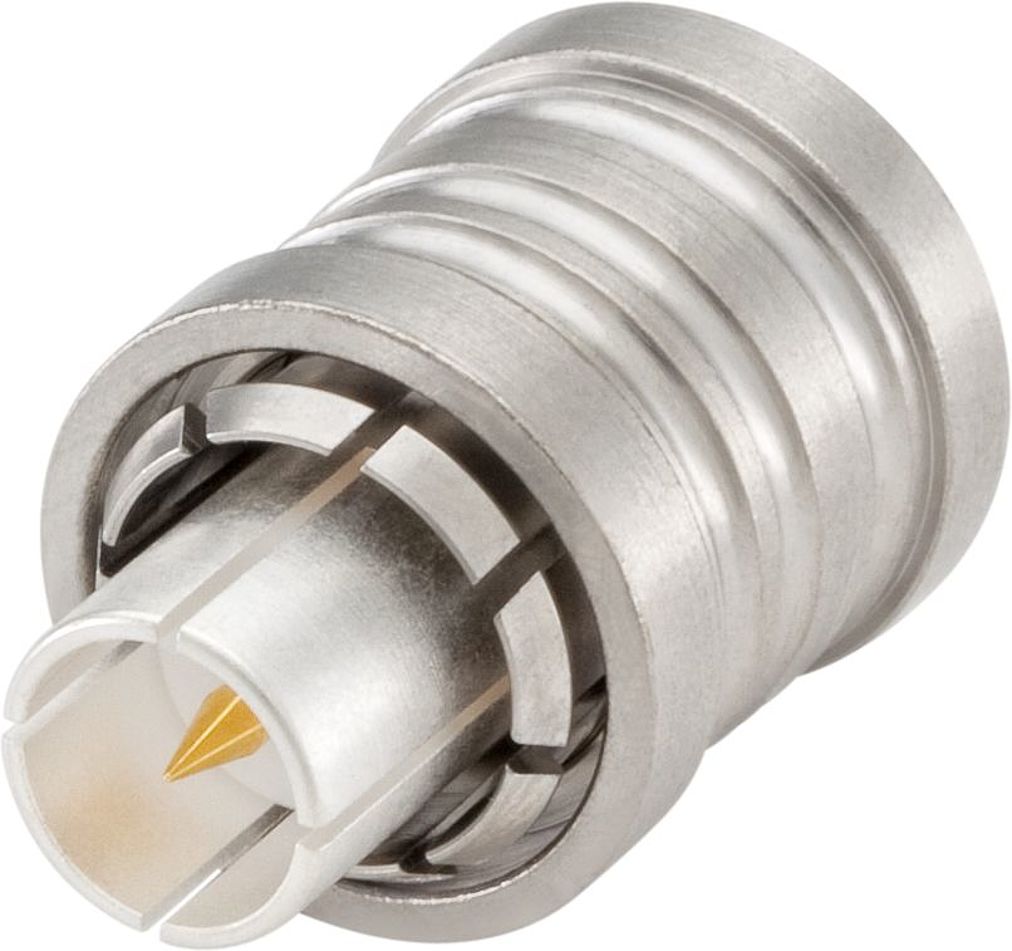

SnapN
Product code LMU51B
Rosenberger SnapN coaxial connectors are ideal for space-constrained mobile base station applications up to 11 GHz. The outer diameter of 16 mm – smaller than the standard N interface – allows higher packing densities while the special quick-lock mechanism enables reliable and easy connections – 10 times faster than Standard N. SnapN jacks (female) and Standard N plugs (male) are intermateable. Assembly tools are not necessary.
Features
- Impedance 50 Ω
- Interface according to Rosenberger SnapN, Female according to IEC 61169-16, CECC 22210, MIL-PRF-39012
- Frequency range DC to 11 GHz
- Return loss (cable connector straight)
- ≥ 32 dB @ DC to 3 GHz, ≥ 25 dB @ 3 GHz to 6 GHz, ≥ 20 dB @ 6 GHz to 11 GHz
- Minimum pitch 16 mm
- Flexibility 360° turnable
- Mating cycles ≥ 200
- SnapN female mateable with N male
- Quick-lock mechanism
