FAKRA

Product code 22W8DC

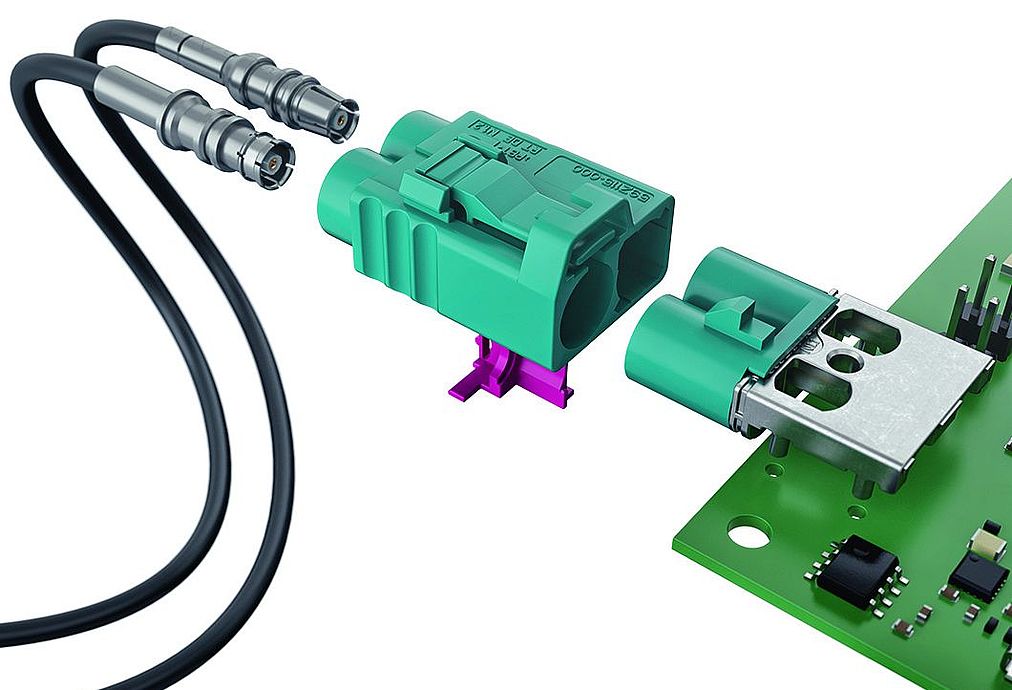

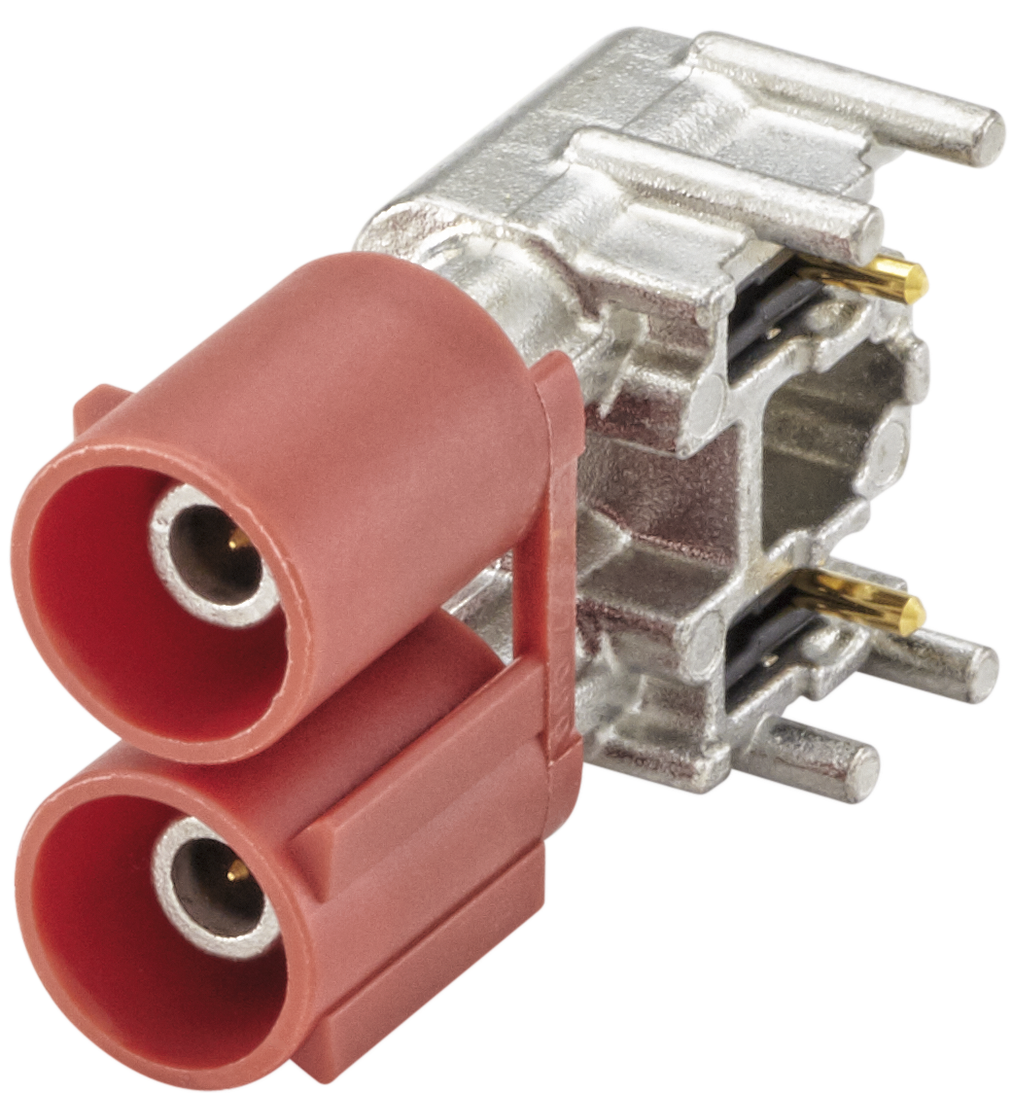

Rosenberger FAKRA* industry standard compatible connectors are designed to fulfill the rigorous mechanical and environmental requirements of the automotive industry. Ensuring maximum electrical and mechanical performance, these high quality FAKRA connectors feature specific color coded plastic housings in accordance with the FAKRA coding industry standard. Thirteen distinct mechanical and color codes enable easy identification and unique keying to avoid mis-mating and additional one neutral coding. Combining Rosenberger’s turned part production expertise and FAKRA SF stamped and formed technology these precision manufactured products are ideally suited for process-safe and fully automated assembly by harness makers – leading to a significant reduction in production costs. Rosenberger FAKRA products are compliant to ISO 20860-1 & 2 and USCAR 18 standards.

Rosenberger

Impedance 50 Ω
Specifications according ISO 20860-1 & US-Car 18
Frequency range DC up to 6 GHz
High data rates up to 8 Gbps
Return loss ≥ 18 dB
Temperature range from -40 °C to +105 °C
Mating cycles ≥ 25
13 mechanical and colored codings and one neutral coding
Primary and secondary lock
Stamped parts on separate coils (center contact, support sleeve, connector head plug)
