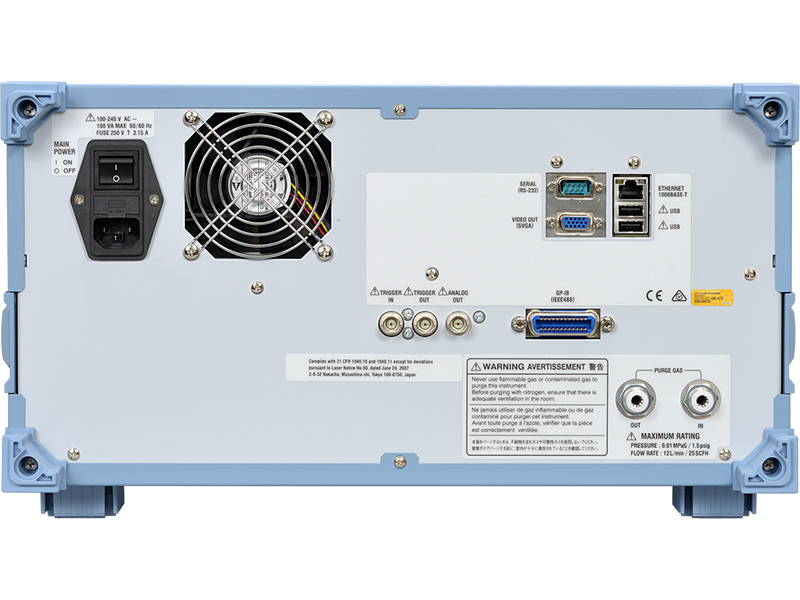

AQ6374 Wide Range Optical Spectrum Analyzer 350 – 1750 nm

The AQ6370D is the latest iteration of the most popular Telecom class OSA from Yokogawa. It offers a versatile wavelength range of 600 nm to 1700 nm ideally suited for both Telecommunications and general purpose applications. The unique free space input design allows testing of both DWDM class singlemode and VCSEL sourced multi-mode fibers in one single model. Newly added functions include data logging, gate sampling,resolution calibration, an advanced marker function and an enhanced auto-sweep mode.

he AQ6370 Viewer is a package of PC application software for PC-based analysis and measurement with the AQ6370 series Optical Spectrum Analyzer. Applicable for AQ6360, AQ6370, AQ6370B/C/D, AQ6373, AQ6373B, AQ6374, AQ6375, AQ6375B, AQ6376 and AQ6377.

The AQ6377 is the latest version of our optical spectrum analyzer series, offering extended wavelength coverage into the MWIR region from 1900 - 5500 nm. Its long wavelength range makes the AQ6377 ideal for environmental sensing and medical applications. Key features of the AQ6377 include gas purging input ports/output ports, a built-in cut filter for high order diffracted light​​​​​​, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.

High Performance LONG WAVELENGTH The AQ6375E covers not only telecommunication wavelengths, but also the SWIR region which is often used for environmental sensing and medical applications. ・Lineup of 3 models [Standard, Extended and Limited] ・Covers wavelengths 1200 to 2400 nm [Standard, and Limited] 1000 to 2500 nm [Extended ]
