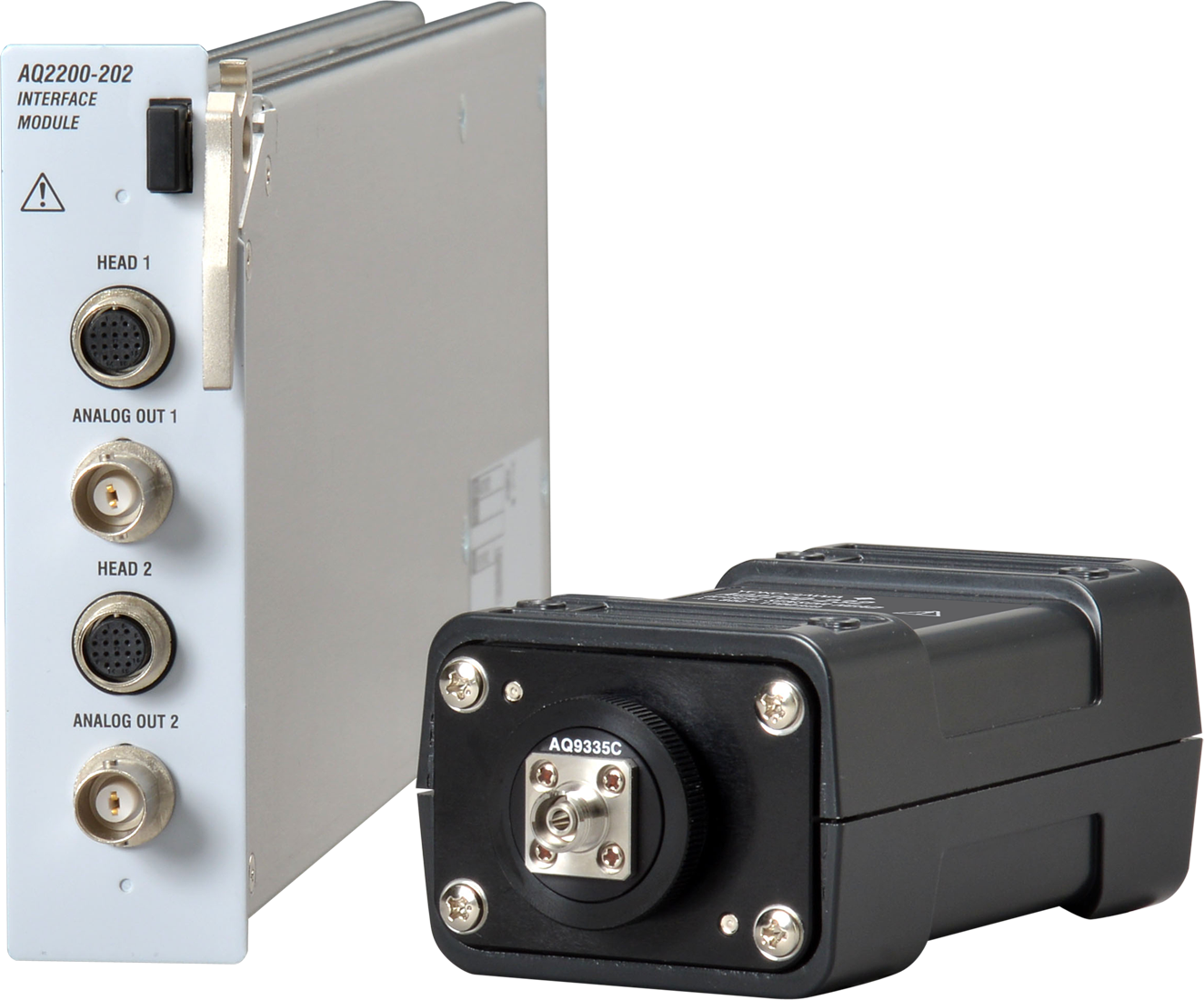

AQ2200-232 Optical Sensor Head (Large diameter detector, 800 to 1700 nm), AQ2200-242 Optical Sensor Head (Large diameter detector, 400 to 1100 nm), AQ2200-202 Interface Module (2-channels)

The AQ2200-212 is high-performance single channel sensor module with an analog output port.

The AQ2200-215 is an optical power meter designed specifically to measure high optical power up to +30dBm. It features high speed sampling and advanced data processing functions. The AQ2200-215 is an ideal measurement tool for optical output power measurement and margin test of WDM transmission equipment, as well as gain measurements of optical fiber amplifiers. It is commonly used in conjunction with other AQ2200 Series modules and the AQ6370C Optical Spectrum Analyzer to offer a flexible customized optical measurement system.

The AQ2200-642 reduces the complexity and cost of 10G optical transceiver testing by combining bus and power control features into the same mainframe that performs Signal Generation, BERT and Optical testing. This allows a single programming interface to control all aspects of the transceiver test, simplifying test setup, decreasing test time and increasing productivity. The wiring complexity and test bench size are reduced by replacing separate Digital Multi-Meters, Programmable Power supplies and Serial I/F controllers with a single module.
