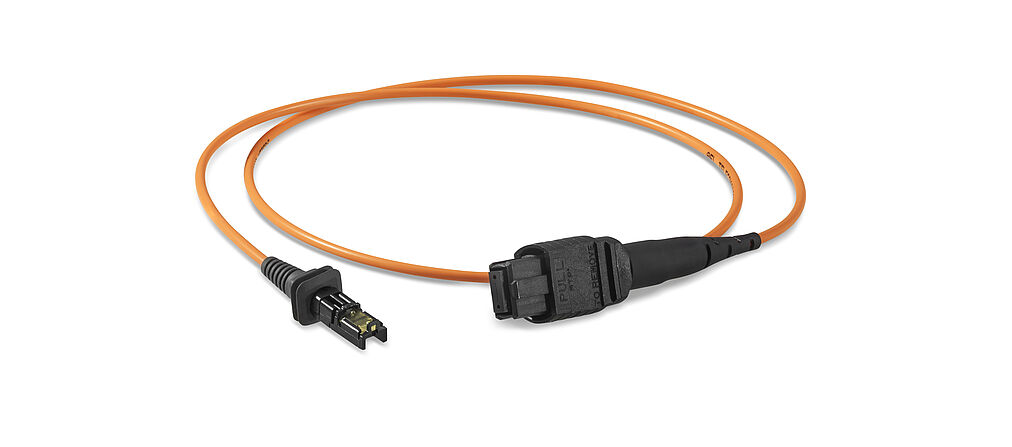

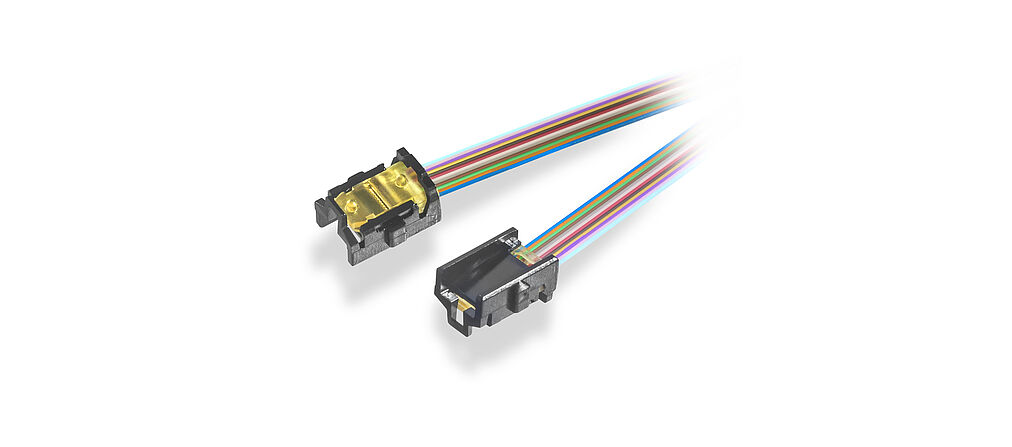

PRIZM® LightTurn®

Rosenberger provides a variety of snap-in D-Sub coaxial and power inserts for fast, reliable mixed card edge chassis. Their small dimensions allow high packing densities as well as easy connection. A combination including power connectors is also available on request. D-Sub Coax Inserts and cable connectors 50 Ω are designed for use in mixed card edge connections in accordance to D-Sub. The maximum frequency is approximately 2 GHz. Available on request. Power Inserts meet the requirements of DIN 41626-T1 and are designed for use in mixed card edge connections in accordance to DIN 41612 or D-Sub. Contact current 10 A, 20 A, 30 A, 40 A. Available on request.

Electric Vehicles (LEV) including e-bikes, e-scooters and pedelecs as well as for UGVs and drones. Providing fast and reliable magnetic connection, these are particularly suited to data communication and power transmission of voltages up to 60 V and current loads up to 40 A. The magnetic locking and precision self-mating capability prevents any accidental or forced disconnection from damaging the connector or the LEV. Furthermore, the high tolerance pin and socket design permits a large number of mating cycles. The RoPD® connection system is ideal for many LEV connection applications – including battery changing and charging – where frequent connection and disconnection is required. The four data contacts and two power transmission pins make a hot-plug capability unnecessary as the data contacts activate the power following connection. For added flexibility the data contacts can be used as a BUS system with an additional supply voltage. Versions of the RoPD® system are also available for EnergyBus applications.

The Rosenberger MagneticUSB is an innovative connection series. All standard USB connectors can be very easily connected to computer or mobile devices thanks to intelligent magnet technology. It can also be disconnected very quickly for optimally protecting USB connections.

Rosenberger has introduced the P-SMP series of Power/RF coaxial connectors, combining all the space saving advantages of SMP connectors with the high performance of SMA connectors. Unlike SMA and QMA solutions, minimum board-to-board distances of 12.6 mm can be realized by using bullets in different lengths. Furthermore, P-SMP connectors are designed for high power loads, up to 200 W @ 2.2 GHz continuous power, and can handle high frequencies up to 10 GHz. Typical applications therefore include board-to-board connections in base stations or board-to-cable connections in power amplifier filter units.
